Hydraulic Rubber Compression Molding Press

Product Description

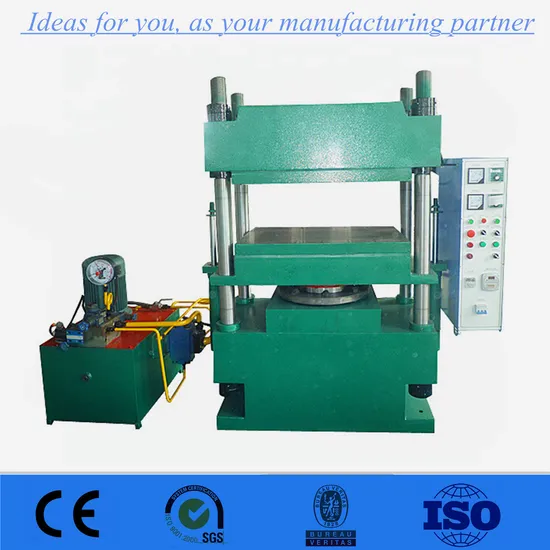

Hydraulic Rubber Compression Molding Press Machine

Product Description

Other name : rubber vulcanizing press , hydraulic vucanizer , hydraulic vulcanizing press . small curing press , large curing press . rubber daylight press


Application : lab use ,rubber & plastic vulcanizing , rubber gasket making , conveyor belt and so on .

Features
1.Specific Pressure required per cm (or per inch) on product or platen to decide the tonnage of the press

2.Heating Media (Steam or electrical) curing temperature, curing time sequence to decide the method of heating, cycle of operation of the press.

3.Therefore, an expert advice for selection of most appropriate press is utmost important, which you get free from SANT Engg. that make Sant Hydraulic Presses the 'Zero Error' Presses

Introduction
1.Hydraulic Presses are the machines in which rubber compound and other materials are shaped as
finished products. As are the machines, so are the finished products. Ranging from25 to 2500 Tons, theses Presses are manufactured with operation safety and optimum machine production in mind. 2.Controls and hydraulic system are perfectly matched to ensure complete customer satisfaction The technique parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

Our Services
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support

2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions

2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines,Train your workers to use machine.

CE ISO9001 Certification
Company Information We ,Qingdao Evertech Industry Co.,Ltd make high quality rubber machine, from materials to producing, we use the good quality material, complete management system, also excellent aftersale service, we hope to be one reliable factory for you!

---
