Kjg-1530 Accurl Laser Cutting Machine for Aerospace Industry Factory Price

Product Description

KJG-1530 ACCURL Laser Cutting Machine for Aerospace Industry
Product Description

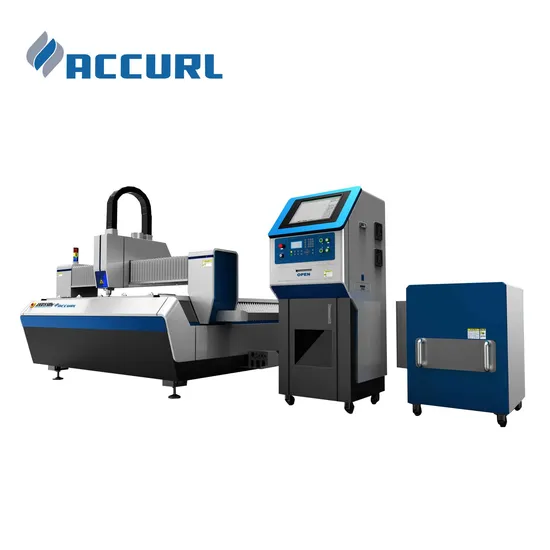

SMART KJG SERIES FIBER LASER CUTTING MACHINE
ACCURL® assemble their lasers cutting machine 2000w/3000w/4000w/6000w to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price. SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
The following elements are included:
• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
• CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System
HYPCUT Touch FSCUT8000 TwinCAT CNC System
• Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm
• Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G Detailed Photos
ACCURL BRAND
SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications,manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
FULLY ANNEALED FRAME
ACCURL steel frames undergo annealing at over 600° to relieve stress. They are built to last years of heavy use without distortion. Auto changing pallet system allows over 1800kg loading weight.
A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.
LASER BEAM SECTION
The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.

GRAPHITE ANTI-BURN TECHNOLOGY
The area in the entire machine tool where the laser can shoot at isall covered and protected by 20mm thick graphite anti-bruning. To insuring the machine bed and working table not be out of shape and burned-out.
Servo Motors and drives from YASKAWA High-speed EtherCAT communication
CNC CONTROL SYSTEM The FSCUT2000 laser cutting control system of an economical laser cutting control system.
Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
CUTTING HEAD RAYTOOLS


The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
CUTTING HEAD PRECITEC LIGHTCUTTER AUTO FOCUS(OPTIONAL)

The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a high cutting quality for all metals - especially mild steel, stainless steel and aluminum.
PROFILE & PIPE CUTTING SYSTEM(OPTIONAL)
The Smartline series offers unparalleled versatility.accurl optional tube and pipe cutting system has the capability to precisely cut pipe/tube and makes it a necessity for anyone who needs precision parts made from various materials, sizes, and thicknesses.

materials	500W	1KW	2KW	3KW	4KW	6KW
mild steel	0.2in	0.3in	0.59in	0.7-0.79in	0.7-0.79in	0.98in
stainl steed	0.079in	0.16in	0.31in	0.39in	0.39in	0.59in
Aluminum	0.079in	0.12in	0.24in	0.31in	0.39in	0.59in
Copper	0.039in	0.079in	0.2in	0.2in	0.2in	0.31in
Brass	0.039in	0.079in	0.16in	0.16in	0.16in	0.31in
Galvanized	0.039in	0.079in	0.16in	0.16in	0.16in	0.31in
