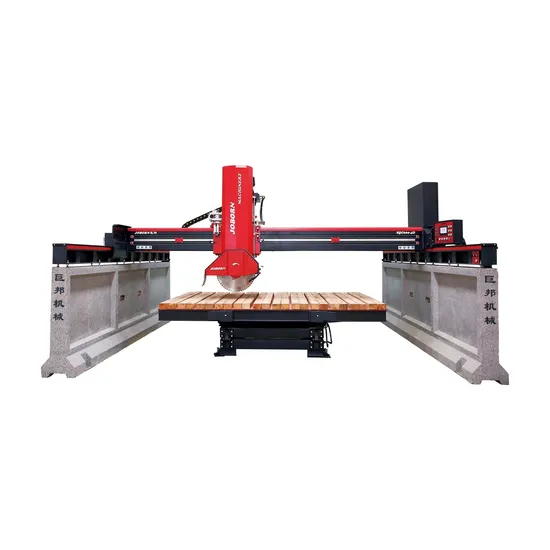

Joborn Automatic Bridge Cutter for Marble Slab Use in Namibia

Product Description

Product Description
This machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, combination of chrome-plated guide pinand wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost;worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit specially cutting granite and marblewith high value and big size.

Appellation	Unit	SQC450-4D	SQC600-4D	SQC700-4D
Max. Disc Diameter	mm	Φ450	Φ600	Φ700
Max. Lifting Stroke	mm	220	350	470
Worktable Size	mm	3200*2000
Worktable Rotation Range(Optional)	°	0°,90°,0°~360°(Each 45° locating)
Worktable Turn-over Degree	°	85°
Max. Processing Height	mm	100	180	230
Water Consumption	m³/h	3
Power Of Main Motor	kW	15	18.5	22
Total Motor	kW	21	24.5	28
Dimension(L*W*H)	mm	6000*4800*3000	6000*4800*3200	6000*4800*3400
Weight	kg	5700	5800	5900

---
