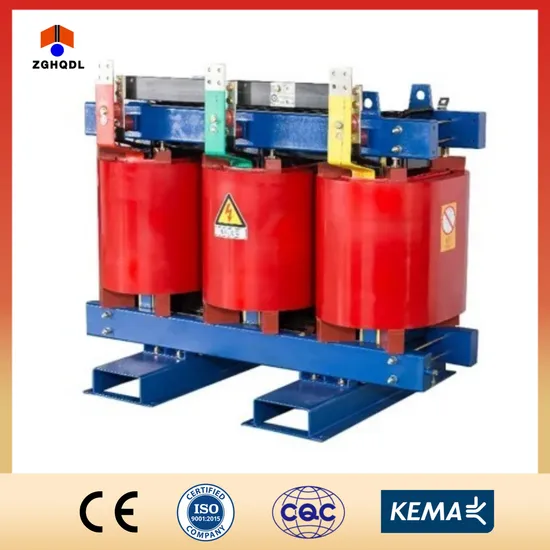

35 Kv Epoxy Resin Casting Dry Type Power Transformer and Distribution Transformer

Product Description

Product Description
For customized products, please consult our online customer service!
Our epoxy resin casting dry-type transformer has the characteristics of simple structure, convenient maintenance, long operation life, high reliability and high flame retardancy. It greatly reduces the workload of maintenance and repair during operation. It can be installed in vital or special locations, such as airport, power plant, high-rise buildings, etc. To meet differnt needs, we have developed production lines for both dry-type transformers with encapsulated windings and dry-type transformers with non-encapsulated windings. For clients from different countries and regions, we offer customized production service. We can provide an quotation for you within 24 hours. Any inquiries are welcome!
Product Parameters
Technical parameters listed in the table below are for reference only.
For customized products, please consult online customer service!

Rated Capacity	Voltage Combination			Connection Symbol	Loss (kW)		Non-load Current	Short Circuit Impedance	Weight (kg)
(kVA)	High Voltage (KV)	Tappping Range	Low Voltage (KV)	Label	No-Load	Load	(%)	(%)	Active Part	Total Weight
30	6 6.3 10 10.5 11	±5% or ±2×2.5%	0.4	Yyn0 or Dyn11	0.19	0.71	2.4	4.0	310	395
50					0.27	1.0	2.4		385	430
63					0.37	1.38	1.8		475	535
80					0.40	1.57	1.8		590	660
100					0.47	1.85	1.6		665	745
125					0.54	2.13	1.5		750	840
160					0.62	2.53	1.4		880	985
200					0.72	2.76	1.4		1000	1120
250					0.88	3.47	1.2		1150	1325
315					0.98	3.99	1.0		1410	1580
400					1.16	4.88	1.0		1575	1760
500					1.34	5.41/5.15	1.0		1950	2180
630					1.30	6.2	1.0	6	1750	1960
800					1.52	7.5	1.0		2030	2300
1000					1.77	10.3	1.0		2350	2650
1250					2.09	12	1.0		2780	3100
1600					2.45	14.5	1.0		3250	3640

Related Products
About Our Company
FAQ
Q1: Are you a factory or trading company
A1: Yes, we are a top-notch manufacturer dedicated to research, development and production of a wide range of high quality transformers. Both our products and price are very competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked and tested before delivery. All our products comply to strict tests, easy maintenance guaranteed. We also offer on-line after-sale service in case of any further problems.
Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, price varies.
Q6: What about maintenance?
A6: Transformers contain no moving parts and require very little maintenance. Periodic inspection and care are recommended practices especially if the transformer is operating in a harsh environment.

---
