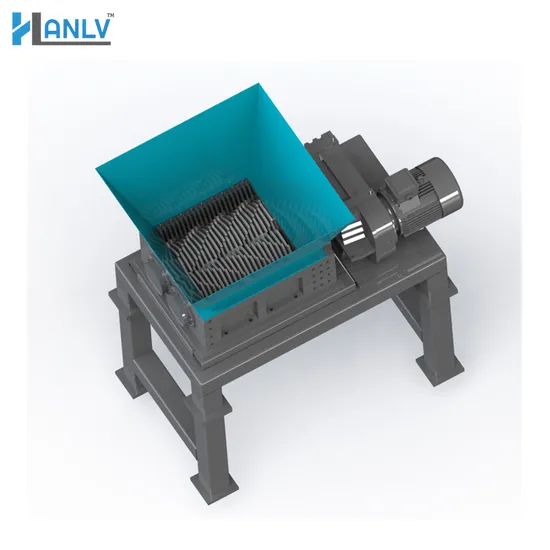

Mini Small Double Shaft Shredder for Scrap E-Waste Hard Drive/Disc Plastic Recycle

Product Description

Product Description Product Introduction
The Double-Shaft Shredder is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components or work with other stages of shredders depending on the material and final size, reducing the material to the required size.
The double-shaft shredder is a relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated. Generally speaking,it is divided into single motor and dual motors.
Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

This article starts with the Double shaft shredder- Single motor.
Which Materials can be Processed?
Product Highlights
1. heavy knife, high crushing efficiency, knives are made of alloy steel casting, solid and long service life.
2. frame plate thick, resistant to high torque, very strong.
3. microcomputer (PLC) automatic control, set to start, stop, reverse and overload automatic reverse control.
4. The device has a low speed, high torque, low noise, dust features can meet environmental standards.
5. easy to adjust, low maintenance, economical and durable.
6. thickness and number of claw cutter knife can be replaced according to different materials. Technical Data Technical Parameters

Item	Name	QTY	Detail/Origin/Brand	Remark
1	Feeding Hopper	1set	HANLV	Carbon Steel, 3mm
2	Shredding Chamber	1set	HANLV	400X400mm
3	Motor & Reducer	1set	China Good Brand	GUOMAO 5.5KW
4	Coupling	1set	HANLV	45#
5	Shafts	2pcs	HANLV	42Cr
6	Moving Blades	16pcs	HANLV	200x25mm HARD ALLOY
7	Ring washers	16pcs	HANLV	25mm 45#
8	Gears	2pcs	HANLV	Ratio 1:1.5
10	Bearings	4pcs	NSK	IMPORTED
11	Down Hopper	1set	HANLV	Carbon Steel ,3mm
12	Electronic Control	1set	China Good Brand	CHNT
13	Support Frame	1set	HANLV	8X8cm, 5mm thickness Tubes
14	Oil Seal	4sets	/	Rubber
15	Control	1set	CHNT	380V/50HZ

Product Details

Discharge Effect
Packaging & Delivery
Customer Feedback
