30 Years Professional Manufacture Produce RG6 Coaxial Cable with ETL RoHS CE (RG6)

Product Description

Product Description

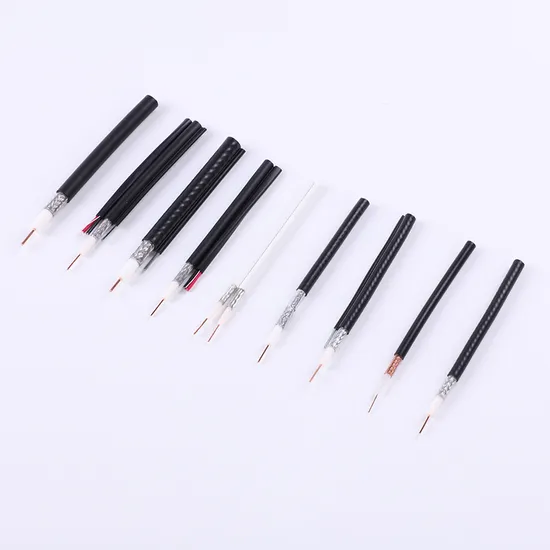

Quad-Shield Rg6 Coaxial Cable Flame Retardant PVC Jacket for CCTV / CATV
RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Quick Details:
Flame Retardant RG6 Coaxial Cable
18AWG CCS
Virgin grade polyethylene insulation
Bonded aluminum foil
Tri-shield
Flame retardant PVC jacket
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18"(4.57mm)
Product description:
21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1stshield is bonded laminated aluminum tape, the 2nd shield is 0.12x64 braid, the third shield is normal aluminum foil, an then the 4th shield is 0.12x 48 braid. The jacket is flame retardant PVC.
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.12 aluminum alloy braid wire, 4ends x16 carry.
Maximum ovality: 0.013" (0.33)
3rd shield: normal aluminum foil.
4th shield: 0.12 aluminum alloy braid wire, 4 ends x 16 carry.
Flame retardant jacket:
Nominal diameter over jacket: 7.10mm±0.2mm
Packing:
We provide buyer's label OEM/ODM design service.
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100 meters(MAX.)
5	2.66
55	5.25
211	10.10
250	11.25
270	11.48
300	12.14
330	12.76
350	13.15
400	14.11
450	15.03
500	15.93
550	16.70
600	17.77
750	19.69
870	21.33
1000	22.97

Company ProfileCompetitive Advantage:
RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
RG6 is of low cost, and it is easy to install as well.
Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, normal lead-time of 40'FCL quad-shield RG 6 cable is about 7 days.
Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
Our Advantages
Hot Product
FAQQ: Could I use my own LOGO or design on goods?
A: Yes, customized logo and/or design on goods are available.
Q: May I visit your factory?
A: Sure, welcome any time with prior notice.
Q: Can your company accept customize?
A: Yes, we can produce based on customization requirements practicable for us.
Q: What's your delivery time?
A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity.
Q: How do you solve after sale service?
A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you.
Q: Can you send a sample for us to develop?
A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.

---
