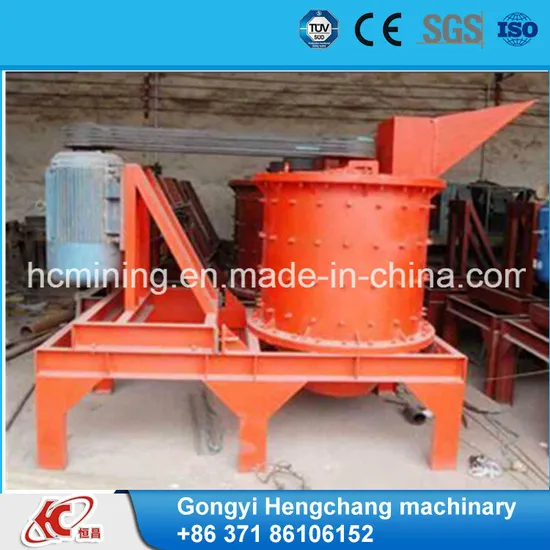

Cement Coal Glass Ceramics Vertical Compound Crusher

Product Description

1.Product Description Of small mobile coal charcoal crusher machine
vertical compound crusher is a new type of machine based on the PCL vertical compound crusher and gets domestic and overseas fine crushing technology into together. It owns the advantages of large crushing ratio, 1.4 times higher than other domestic similar machines; high efficiency and energy-saving; the life of the wearing parts increased 2-3 times; adjustable gap between hammer and impact plate, which can satisfy different sizes requirement. It is widely used in mining, metallurgy, refractory, cement, coal, glass, ceramics,and electric power industries.
2.Working principle Of small mobile coal charcoal crusher machine
when the machine works the motor drives the rotor which fixed on the main bearing to run quickly towards the certain direction . The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the Centrifugal Force. Because the impact board is bevel ,the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead. After gaining enough power, the materials are thrown to the impact board again and again. The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and finally the materials are gradually crushed into needed sizes .
3.Main Features Of small mobile coal charcoal crusher machine
1.The newly-adopted tooth-boards have greatly increased the effective length of the jaw, resulting in larger yield
2.The broken cavity is deep and without dead zone, increased capacity and output feed
3.More energy conservation: stand-alone can save energy by 15%-30% and system's energy conservation can be more than twice
4.The discharge opening apply the hydraulic adjustment unit, which will make it convenient, rapid and high efficient. The clearance of discharge opening can be adjusted to even smaller
5.Fast and Safe setting adjustment system

4.Technical parameter Of small mobile coal charcoal crusher machine

Model	Feeding size (mm)	Discharging granularity (mm)	Production capacity (t/h)	Rotating speed of main shaft (r/min)	Motor power (kw)	Overall dimensions (mm)
PFL-800	<100	<3-5 60-90%	10-20	934	22	2100×1200×1700
PFL-1000	<120	<3-5 60-90%	20-40	769	37	2600×1400×1900
PFL-1250	<150	<3-5 60-90%	40-70	530	75	2800×1600×2100
PFL-1500	<180	<3-5 60-90%	70-100	495	132	3100×1900×2200
PFL-1750	<200	<3-5 60-90%	130-190	424	160	3710×2360×2390
PFL-2000	<220	<3-5 60-90%	100-160	370	185	4100×2660×2620

5.Our Company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Our plant have been awarded by China Ministry of Agriculture as the "excellent quality management enterprise", "Enterprise of Observing Contracts and Keeping Promise enterprise" prize by Zhengzhou industrial and commercial bureau in consecutive years, "good faith private enterprise" prize by both Henan Province and Zhengzhou City, "quality trustworthy enterprise" by Bureau of Technical Supervision department .
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: What material does your equipment can process ?
A2: Such as, gold ore, copper ore, iron ore, tungsten ore and other ores.
Q3: Can you provide a complete line for mineral separation ?
A3: yes, of course, we can provide gravity or flotation separation way.
Q4: What is your terms of payment ?
A4: 30% advanced payment by T/T, balance paid before shipment.

---
