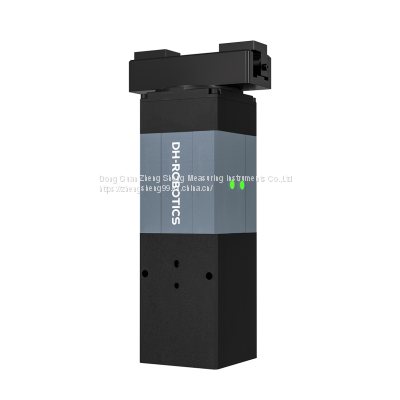

Product Details
Product Description
Product Description
Product features
1.Grab/rotate indefinitely
2.Compact/dual servo system
3.Ultra-high repetition accuracy
Application scenarios
In the field of medical automation ,reagents ,blood samples ,nucleic acids and other samples are processed to open and close the cover ,and scanned code detection and other scenes ;3C electronics ,packaging automation ,new energy industry positioning assembly,deviation correction and other scenarios.
Technical parameters
Hold power(one side) ：10~35N
Total trip ：30mm
The rated torque :0.25N.m
Peak torque :0.4N.m
Rotation range :Infinite rotating
Maximum recommended load :0.7kg
Maximum rotational speed :1500degrees/S
Rotational repetition accuracy :±0.02degrees
Position repetition accuracy :±0.02mm
Open/close time ：0.3s/0.3s
The weight of the :1.2 kg
size : 178mm×50mm×50mm
Runtime environment
Working voltage ：24V DC±10%
Ratted current ：1.1A
Peak current ：2A
Protection grade ：IP40
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS
>>
