Jd-0.75 High Speed Electric Mining Dispatching Winch

US$2,400.00-6,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
JD-0.75
Speed
Fast
Carrying Capacity
Middle-Level
Tonnage
0.4t
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jd-0.75
Traction Force Kn
7.5
Average Speed M/S
0.71
Dia of Wire Rope mm
9.3
Drum Size mm
200*300
Rope Capacity M
250
Total Reduction Ratio
34.81
Motor Type
Ybj-11.4
Motor Power Kw
11.4
Motor Voltage V
380/660
Weight Kg
400
Transport Package
Wooden Case or Carton Case
Specification
1085*730 *697 mm
Trademark
China Coal
Origin
Jining City, Shandong Province, China
Production Capacity
1000 Sets Per Month

Product Description

Introduction of JD-0.75 High Speed Electric Mining Dispatching WinchJD series explosion-proof dispatching winch is used for dispatching trolleys, tramcar in underground parking lots, middle roadways, mining transportation lanes in mines, dragging or carrying heavy loads. We can design and manufacture different types of dispatching winch with maximum pulling force 7.5-40KN.zmwm10 Parameter of JD-0.75 High Speed Electric Mining Dispatching Winch
Model JD-0.5 JD-0.75 JD-1 JD-1.6 JD-4
Traction Force KN 7.5 7.5 10 17.6 30
Average Speed m/s 0.71 0.71 0.78 1.4 1.44
Dia of Wire Rope mm 9.3 9.3 12.5 15 20
Drum Size mm 200*300 200*300 224*304 310*400 620*580
Rope Capacity m 250 250 400 440 480
Total Reduction Ratio 34.81 34.81 41 32.5 31.8
Motor Type YB132S-4-B5 YBJ-11.4 YBJ45-4 YBJ40-4 YB2-132S-4
Motor Power KW 5.5 11.4 25 40 5.5
Motor Rev Rev/min 1440 1460 1470 1470 1440
Motor Voltage V 380/660 380/660V 380/660V 380/660V 380/660V
Di mention mm
L*W*H		 1085*730
*697		 1085*730
*697		 1073*766
*727		 1448*1255
*1260		 1900*2350
*1370
Weight KG 400 400 578 1370 2800

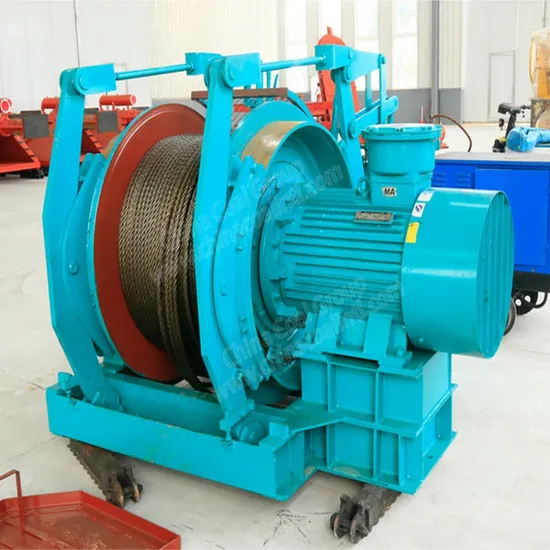

Pictures of JD-0.75 High Speed Electric Mining Dispatching Winch
