Vertical Knee Type Box/Square Column Vertical Drilling Machine

Product Description

Product Description

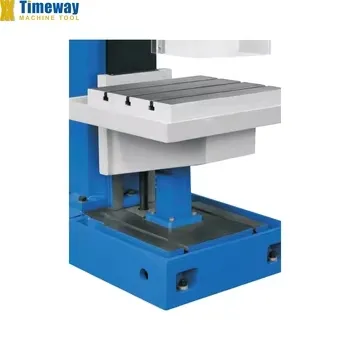

Box-column Drilling Machine
- Square-column vertical drilling machine is a universal general-purpose machine.
- It's used for counter-sinking,spot-facing drilling, tapping, boring, reaming, etc.
- The machine has catch thef unction of tap-automatically reversing device which is suitable for tapping of blind and determined holes.
- The machine has high effciency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation.

SPECIFICATION	UNIT	SD-80B	SD-100B
Max.drilling capacity	mm	80	100
Max.feed resistance	N	30000	40000
Max.permissible spindle torque	N.m	800	1150
Power of main motor	kw	5.5	7.5
Throat distance	mm	375	480
Spindle taper	-	MT6	MT6
Spindle travel	mm	250	310
Spindle box travel	mm	250	300
Spindle speed range	r/min	40-570	26-320
Spindle speed range	steps	9	6
Feed rates	mm/rev	0.1-0.78	4
Feed rates steps	steps	0.07, 0.15, 0.26,0.4	0.07, 0.15, 0.26,0.4
Max. travel of table	mm	160	170
Working surface of table	mm	electromagnetism	electromagnetism
Distance spindle nose to table	mm	580x450	580x450
Overall dimensions(LxWxH)	mm	575x565	575x565
Net weight / Gross weight	kg	2.2/2.8	2.2/2.8
Packing size (LxWxH)	mm	700x1150x2200	700x1150x2200

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
