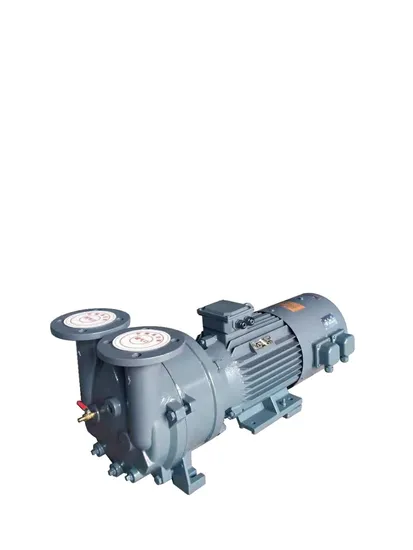

2BV5 Series Water Ring Vacuum Pump for Chemical, Chemical Fertilizer, Paper and Pharmaceutical Industry From China

Product Description

Catalogue sheet 2BV5 series.
Liquid Ring Vacuum pump
Introducing the 2BV5 Series China Pumps Liquid Water Ring Vacuum Pump - a top-of-the-line product designed to meet all your vacuum pumping needs. This high-quality vacuum pump is perfect for a wide range of applications, from industrial to commercial use.
With its advanced technology and superior performance, the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump is the ideal choice for those seeking a reliable and efficient vacuum pump. Its powerful motor ensures maximum suction power, while its durable construction guarantees long-lasting performance.
This vacuum pump is designed to handle a variety of liquids and gases, making it a versatile tool for any industry. Its compact size and easy-to-use design make it a popular choice for those seeking a reliable and efficient vacuum pump.
So if you're looking for a top-quality vacuum pump that can handle all your pumping needs, look no further than the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump. With its superior performance and advanced technology, this vacuum pump is sure to exceed your expectations.
Product Description
ELMO-F vacuum pumps are designed by Siemens. The pumps are suitable for evacuating gases and wet vapoure down to inlet pressure of 33 mbar (97% vacuum).
All these vacuum pumps are supplied with built-in cavitation protection. For long-term operation below 80mbar abs. the cavitation protection should be connected for protecting the pump. An inlet pressure of 10 mbar abs. can be achieved by connecting a gas ejector(see accessories). The gas ejector can be mounted directly onto the vacuum pump.
The 2BV5 ELMO-F pumps are especially space-saving units in monoblock design(degree of protection IP55).
They are available in cast iron ( fitted with Stainless steel impeller and portplate) and in chrome-nickel steel (see table).

Table 1

Material of construction for 2BV5

MODEL

2BV5(2AV1)

TYPE

VACUUM/COMPRESSOR

PRODUCT CODE

110-161

MATERIALS AND WEIGHTS

COMPONENTS

ALL IRON(SS FIT)

ST. STEEL

OPTIONAL

BODY/LOBE

GB 9439 HT200/ASTM A48 CLASS30B

ASTM A351 CF8

CF8M,CF3,CF3M,2205

HEAD

GB 9439 HT200/ASTM A48 CLASS30B

ASTM A351 CF8

CF8M,CF3,CF3M,2205

SHAFT

GB/T 1220 20Cr13/ASTM A276 420

GB/T1220 S30408 /A276 304

ASTM A276 316L

ROTOR

ASTM A351 CF-8

ASTM A351 CF8

CF8M,CF3,CF3M,2205

CONE/PORT PLATE

ASTM A351 CF-8

ASTM A351 CF8

CF8M,CF3,CF3M,2205

SHAFT SEALING

Mechanical seal

Mechanical seal

GASKETS

Rubber sealant

Loctite 515/510

CONSTRUCTION DETAILS

PORT TYPE (NO. OF STAGES)

PLATE (1)

ROTOR BALANCE TYPE

DYNAMIC

ROTATION VIEWED @ D.E.

CLOCKWISE

BALANCE TOLERANCE

ISO1940 G6.3

Table 2 Pump data

Performance Data

/Pump Size

Capacity

Suction Pressure

Speed

Motor Data

Drive

Weight

P/N

m³/h

mbar.A

RPM

Power

Frequency

Voltage

kg

2BV5 110

40- 100

33 - 1000

1450/1750

4KW

50Hz

380V-△/660V-Y

Monoblock

97

2AV2 110-0H.00/0K.00

2BV5 111

60 - 140

33 - 1000

1450/1750

5.5KW

50Hz

380V-△/660V-Y

Monoblock

113

2AV2 111-0K.00

2BV5 121

80 - 180

33 - 1000

1450/1750

7.5KW

50Hz

380V-△/660V-Y

Monoblock

144

2AV2 121-0K.00

2BV5 131

110 - 240

33 - 1000

1450/1750

11KW

50Hz

380V-△/660V-Y

Monoblock

194

2AV2 131-0K.00

2BV5 161

150 - 300

33 - 1000

980/11150

12+SF1.25

50Hz

380V-△/660V-Y

Monoblock

340

2AV2 161-0K.02

Characteristic Curves

Selection and ordering data accessories 2BV5
		material	For ELMO-F type		Order No.		Weight Appr. KG
	Lime transformer prevents lime scale build up in pumps, pipes, tanks, The structure of the lime crystals in changed on a physical basis with the help of permanent magnets so that there is no lime scale build up	Brass, chromed	2BV2… 2BV5 110/111 2BV6 110/111 2BV5 121/131/161 2BV6 121/131/161		2BX1 115 2BX1 116		1.4 1.8
	Discharge liquid separator including recirculation pipe cavitation protection pipe, gaskets and screw	Plastic/ Steel Chrome-nickel steel/ Chrome-nickel steel	2BV5 11.-OK… 2BV5 12./13.-OK… 2BV5 16.-OK 2BV.11.-OH… 2BV.12./13.-OH… 2BV.16.-OH…		2BX1 100 2BX1 101 2BX1 106 2BX1 102 2BX1 103 2BX1 107		7 9 12 17 19.5 38
	Non-return valve (betweent flanges) for vertical mounting	Casing: Steel Cup:Chrome-nickel steel Gasket:Teflon	2BV5 11.-OK… 2BV5 12./13.-OK… 2BV5 16.-OK		2BY6 905-5BX08 2BY6 906-5BX08 2BY6 908-5BX08		1.2 17 2.3
		Casing: Steel Cup:Chrome-nickel steel Gasket:Teflon	2BV.11.-OH… 2BV.12./13.-OH… 2BV.16.-OH…		2BY6 905-5HX08 2BY6 906-5HX08 2BY6 908-5HX08		1.2 17 2.3
	Mounting accessory for direct mounting of the non-return valve onto the pump, consisting of 1 mating flangs with weld-neck in acc. With DIN 2642, PN 10, gaskets, fixing screws. Consisting of 1 mating flange with weld-neck in acc. with DIN 2642, PN 10, gaskets, fixing screws	Flange: Cast iron Weld-neck: Chrome-nickel steel Steel	2BV.110-0 2BV.111-0 2BV.121-0 2BV.131-0 2BV.161-0 2BV.110-OK 2BV.111-OK 2BV.121-OK 2BV.131-OK 2BV.161-OK		2BX1 081 2BX1 081 2BX1 082 2BX1 082 2BX1 083 2BX1 090 2BX1 090 2BX1 091 2BX1 091 2BX1 092		3 3 3.5 3.5 4 3 3 3.5 3.5 4
	Mating flange 1 loose flange with weld-neck, in acc. With DIN 2642, PN 10, gasket and fixing screws Threaded flange 1 loose threaded flange in acc. With DIN2566, PN 16, gasket and fixing screws	Flange:Cast iron Weld-neck: Chrome-nickel steel Steel	2BV.110-0 2BV.111-0 2BV.121-0 2BV.131-0 2BV.161-0 2BV.110-OK 2BV.111-OK 2BV.121-OK 2BV.131-OK 2BV.161-OK		2BX1 093 2BX1 093 2BX1 094 2BX1 094 2BX1 095 2BX1 096 2BX1 096 2BX1 097 2BX1 097 2BX1 098		3 3 3.5 3.5 4 3 3 3.5 3.5 4
	Gas ejector (characteristic curves as above)
	Mains frequency 50 Hz
	Curve No. 101 V+301 V 111 V+311 V 121 V+321 V 131 V+331 V 161 V+361 V 101 V+301 V 111 V+311 V 121 V+321 V 131 V+331 V 161 V+361 V	Head; Diffusor; Jet Ductile cast iron;ductile cast iron; Chrome-nickel steel Chrome-nickel steel;Chrome-nickel steel;chrome-nickel steel	2BV5 110-OK… 2BV5 111-OK… 2BV5 121-OK... 2BV5 131-OK… 2BV5 161-OK… 2BV. 110-OH… 2BV. 111-OH… 2BV. 121-OH… 2BV. 131-OH… 2BV. 161-OH...		2BP5 110-1KC 2BP5 111-1KC 2BP5 121-1KC 2BP5 131-1KC 2BP5 161-1KC 2BP5 110-1HC 2BP5 111-1HC 2BP5 121-1HC 2BP5 131-1HC 2BP5 161-1HC		15 19 25 15 19 25
	Mains frequency 60 Hz
	Curve No. 103 V+303 V 113 V+313 V 123 V+323 V 133 V+333 V 163 V+363 V 103 V+303 V 113 V+313 V 123 V+323 V 133 V+333 V 163 V+363 V	Head; Diffusor; Jet Ductile cast iron;ductile cast iron; Chrome-nickel steel Chrome-nickel steel;Chrome-nickel steel;chrome-nickel steel	2BV5 110-OK… 2BV5 111-OK… 2BV5 121-OK... 2BV5 131-OK… 2BV5 161-OK… 2BV. 110-OH… 2BV. 111-OH… 2BV. 121-OH… 2BV. 131-OH… 2BV. 161-OH...		2BP5 110-1KF 2BP5 111-1KF 2BP5 121-1KF 2BP5 131-1KF 2BP5 161-1KF 2BP5 110-1HF 2BP5 111-1HF 2BP5 121-1HF 2BP5 131-1HF 2BP5 161-1HF		15 19 25 15 19 25

---
