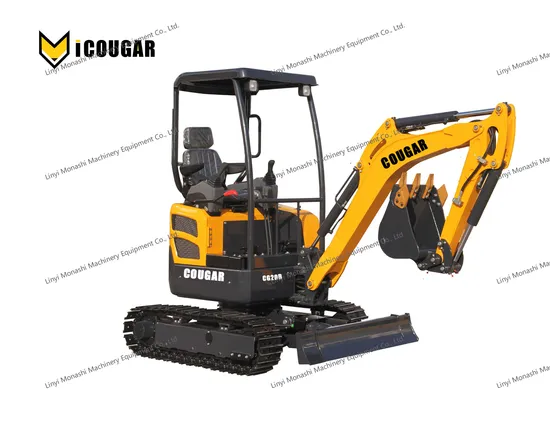

Compact 2 Ton Crawler Excavator with Multiple Attachment Options

Product Description

ABOUT US
Our company offers a variety of products which can meet your multifarious demands. We adhere to the management principles of
"quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy the
potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order
to realize a win-win situation since the trend of economic globalization has developed with irresistible force.
The COUGAR Equipment is an innovative machine that reduces the costs of performing key tasks and the process of improving the
environments in which people live and work. Developed to replace hand labor, the COUGAR provides a cost-effective,
terrain-friendly solution for landscapers, irrigation contractors, plumbers, electricians, and property owners as they dig,
trench, till, auger, demo, place materials, and perform a multitude of other tasks.
All steel parts are built in-house. This means that we have total oversight and control over our types of equipment production and
quality. By manufacturing the entire machines at one location we have been able to make huge savings, allowing us to manufacture
high-quality wheel loaders and construction machinery at the lowest rates for our customers. Having total control over our
production has also meant that we can make modifications to our equipment as requested by our customers. Recommend model :CG20,CG827 ,CG823,CG8810,CG8818,CG829,CG830,CG858,CCG18,CG10,CCG150,CG9075,CG130
SPECIFICATIONS:

ENGINE
Emission Standard	Euro V/ EPA4
Make	KUBOTA
Model	D1105
Power /Rotation speed	14kw(19HP)@2000rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5/3.5km/h
Width of track shoe	230mm
Number of track shoe per side	38pcs
Number of upper roller per side	1
Number of bottom roller per side	3
PERFORMANCE PARAMETER
Standard Bucket capacity	0.07m³
Swing speed	9 rpm
Max. Grade ability	35°
Maximum Bucket digging force	18KN
Maximum Arm digging force	11KN
Hydraulic system pressure	21.5Mpa
Machine weight	2000kg
MACHINE SIZE
Overall dimension (L*W*H)	3555mm*1300mm*2290mm
Axle base(Track length on ground)	1230mm
Track gauge	760mm
Min.Ground clearance	150mm
Swing radius at tail	650mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2440mm
Maximum Digging depth	2400mm
Maximum Vertical digging depth	2025mm
Maximum Digging radius	4040mm
Minimum swing radius	1610mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	270mm
Boom swing angle(Left)	75°
Boom swing angle(Right)	45°

Details Images
Packing & Delivery
PACKAGE (1) Iron frame with plywood,LCL ship.
(2) Wholesale package: Nude pack, 4sets/20GP Nude pack, 8sets/40GP FAQ
Q1:Are you the manufacturer or the trading company? We are the manufacturer of the COUGAR skid steer loader, mini loader,excavators,and various attachments. And we have our own trading company. 1)We can supply good service with professional international trade 2)Our price is much more competitive with good quality

Q2:Do you offer the OEM or ODM service?what's the MOQ?
Yes, we can make it , the MOQ is 1 unit!

Q3:What's the lead time? How long can i get the equipment after payment?
1)The lead time around 14 days if you wanna customized the machine.
2)The standard machine in stock ,could delivery ASAP after get your payment.


Q4:What's the warranty?
1)Cause the COUGAR equipment's engine, hydraulic pump,valve, motor... etc offer 1 year global warranty, so you can get the warranty from the local market.
2)We offer online video support, free spare parts, video technical support,field maintenance and repair service,service for a whole life of cougar machine.

Q5: How to pay for you?
30%T/T in advance as deposit,70% T/T before shipping.

- Please check that all Beneficiary and Bank details are correct when sending us a Bank Transfer. - Under no circumstances should you send us a bank transfer to an account other than the one shown above. - Our billing details will never be modified or changed.

---
