Product Details
Product Description
Product Description
2024 Guide to Coal Briquette Machine ROI Calculation
Feeding Size:<5mm
Capacity: 1-50T/H
Raw Material: coal powder, coal gangue, soft coal, anthrocite coal
Application: Refractory, power plant, metallurgical, chemistry, energy, transportation and heating, etc.
2024 Guide to Coal Briquette Machine ROI Calculation Introduction:
2024 Guide to Coal Briquette Machine ROI Calculation is also called coal powder molding machine, it is used to briquette coal powder, coal gangue, soft coal, anthrocite coal, etc. Belongs to cold briquetting technology; In production, it can produce popular briquette shapes, like oval shape, pillow shape and square shape, etc. in high density, strong strength and high hardness through adding some kind of binder material, so customers are more like it. Its structure is composed of three parts: feeding system, transmission system and briquetting system. XM290 modelis often as a trial machine goes to customer site for small size and easy maintenance.
(1) 2024 Guide to Coal Briquette Machine ROI Calculation is also called coal powder molding machine.
(2) It can produce popular briquette shapes, like oval shape, pillow shape and square shape, etc.
(3) Finished briquettes are in high density, strong strength and high hardness.
(4) Briquette machine is composed of three parts: feeding system, transmission system and briquetting system.
2024 Guide to Coal Briquette Machine ROI Calculation Working Principle:
(1) Through reducer transmitting the powder material to two rollers, and making them rotated in opposite directions.
(2) The powder materials naturally enter into the roller molds.
(3) When the materials rotating to two rollers line contact points, materials pressure reached a peak.
(4) Under enormous pressure, the powder materials are suppressed into finished briquettes.

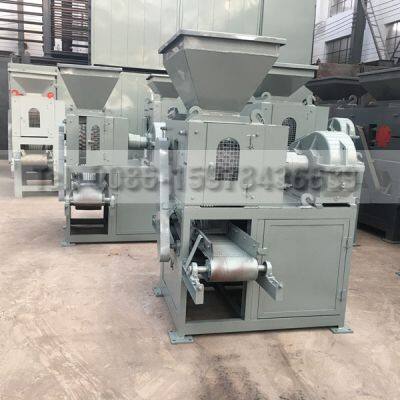

XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm |
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo |
| According to different material adjust machine parameter to meet customer production |
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm |
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. |
| According to different material adjust machine parameter to mmet customer production |
Company Profile
Zhengzhou Shisheng Machinery Co., Ltd.
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
