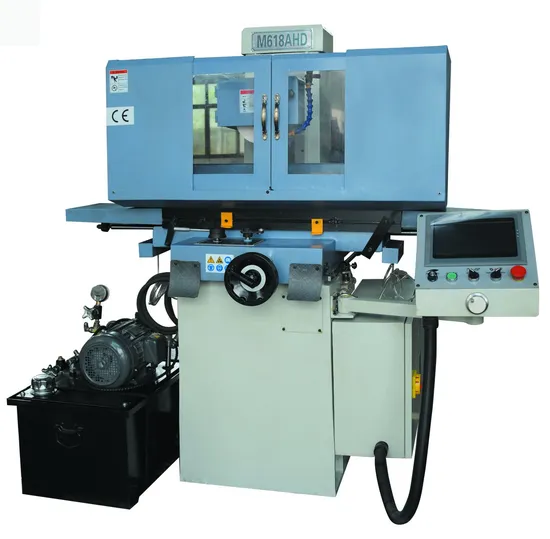

Automatic Surface Grinding Machine (M618AHD): Model :M618AHD (3-Axis full auto )
| Specification | M618AHD |
| Table size | 460x180mm |
| Max.Travel of table | 500x190mm |
| Tabe Max.cutting area | 500x190mm |
| Number of T-Slot | 1x12 |
| Distance from table to spindle center | 335 mm |
| Spindle speeds | 2800rpm |
| Table longitudinal speed | 3-23 m/min |
| Table Horizontal continuous speed | 150mm/min |
| Table Horizontal intermittent speed | 0-5mm |
| Vertical feed MPG feed( The MPG rotates) | 0.1/1/10 mm |
| Vertical feed MPG feed( The each grid) | 0.001/0.01/0.1)mm |
| Spindle motor | 1.1kw |
| Cooling motor | 0.04kw |
| Cross feed motor or table | 0.06kw |
| Vertical feeding servo motor | 0.75kw |
Hydraulic motor
| 1.5KW |
| Working pressure | 3Mpa |
| Oil tank capacity | 80L |
| Max. Capacity | 18L/min |
| The machined surface of the base of paralleishm | 300/0.005 mm |
| Surface roughness | 0.32μm |
| Net Weight | 800kg |
| Gross weight | 900kg |
| Packing size | 1700x1150x1900 mm |
