China No-Crush Sun Wheels Wholesale Manufacturer

Product Description

Product Description

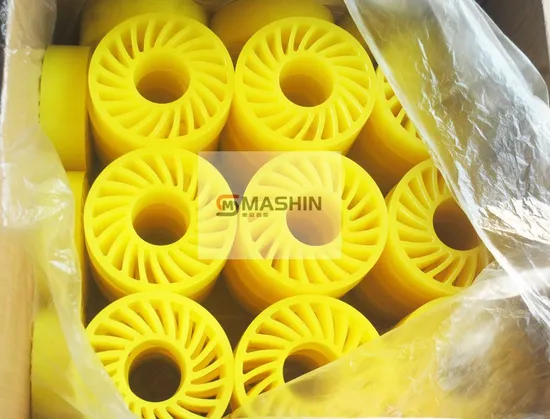

The no-crush wheels use imported polyurethane raw materials, and advanced production equipment ensures that each wheel produced has uniform performance, excellent elasticity and wear resistance. Our wheels come from a manufacturer with more than 15 years of production experience. We have complete specifications and the wheels are sold to many countries. We provide mold customization services. Detailed Photos
Product Description Product Description

Product	No Crush Polyurethane Sun Wheel
Application	Printing Machine/Corrugated Cardboard Production Line
color	Red/Yellow/Black
common specification(mm)	165*65*50, 330*220*70
material	polyurethane
conventional hardness	60-65,customizable
Life Time	More than 1 year (under normal conditions)

Shore hardness scale of the no crush wheel?
The hardness is 58HA, which is a moderate hardness. If the hardness is too low, the wheel will deform. If the hardness is too high, the cardboard maybe crushed.


Features of our no crush wheel:
(1)High elasticity, high wear resistance, high friction coefficient, no harm to paperboard and long life.
(2)The no crush wheel has a flat surface to ensure that the no crush wheel surface fully contacts with the paperboard, so as to achieve the most efficient transmission without damaging of the paperboard.
(3)The no crush wheel has the features of no slipping, no skewing of paper feeding, and no indentation of paper; Moderate elasticity can ensure the no crush wheel to circle in time.

Provide Size Customization

Outer diameter(mm)	inner diameter(mm)	thickness(mm)
165	65	50
165	50	50
165	70	50
165	115	50
165	100	50
135	50	50
125	50	50
110	50	50
100	50	50
170	65	50
200	120	50
265	120	50
280	170	50
330	220	70

Installation Instructions
