1kw Hybrid Solar Inverter Power Supply Energy with UPS Panels System

Product Description

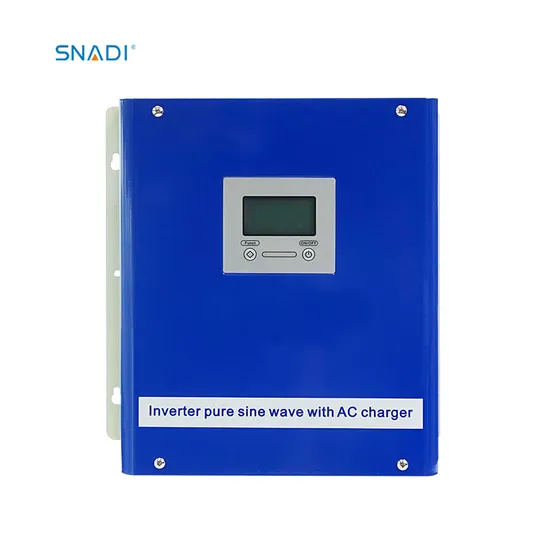

1KW hybrid solar inverter power supply energy with UPS function for panels system
Product overview
With or double MCUs,the product provides different charge voltages and charge currents to realize charge management for batteries of different types.Its mains supply preferred mode,energy-saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.
It has an LCD.It is widely applied to families,schools,streets,frontier defense,pasturing areas,industrial equipment,satellite communication equipment ,vehicle-borne equipment ,ambulances,cars,ships,etc.

Main features
Excellent performance because of double-MCU intelligent design
Pure sine wave output for compatibility with loads of different types
Visualization of operation status of the equipment through a digital LCD
A wide range of input voltage,accurate output and full automatic voltage stabilization
Settable battery type and charge current for the charge management of batteries of different types
Settable mains supply preferred mode,energy-saving mode and battery preferred mode for easy meeting of the needs of different users
Overall protection function(battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection and overtemperature protection)
Technical Indexes

Type:FT-		1KW	2KW	3KW	4KW		5KW			6KW
Rated power		1000W	2000W	3000W	4000W		5000W			6000W
Battery	Rated voltage	12VD/24VDC /48VDC		24VDC/48VDC			24/48VDC		48/96VDC
	Charge current	30A(default)-C0-C6can be set
	Battery type	U0-U7 can be set
(AC )Input	Voltage range	85-138VAC/170-275VAC
	Frequency	45-65Hz
(AC) Output	Voltage range	110VAC/220VAC;±5%( Inverter mode)
	Frequency	50/60Hz±1%( Inverter mode)
	Output wave	Pure sine wave
	Switching time	<10ms( typical load)
	Efficiency	>85%(80% Resistance load)
	Overload	110-120%/30S;>160%/300ms;
	Protection	Battery overvoltage/lowvoltage, overload, short circuit protection, overtemperature protection, etc.
Operating ambient temperature		0-40ºC
Storage ambient temperature		-15 - +50ºC
Operating/Storage ambient		0-90% No condensation
Machine Size: L*W*H (mm)		486*247*179			555*307*189
Package size: L*W*H(mm)		550*310*230			640*370*240
Net weight/Gross weight(Kg)		11/13	14/16	16/18	23/27	26/30		30/34

Application in Solar Power System
FAQ
Q1 :What is the warranty of your product?
A:Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2:Can you do OEM?
A:Yes,we can offer OEM service.
Q3 :How long is your lead time?
A:5~10 days
Q4: What minimum order do you require?
A:1 piece
Q5 :Why choose us?
1)All of our products have CE certification,ISO9001:2008,RoHS.
2)We have our own factory,the selling prices is competitive.
3)Prompt delivery and good after-sale services.
4)80% new materials for production and superior quality.
5)professional engineer designers.
Remark
Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc
All products purchased by our company will be efficient, the best quality and satisfied after-sale service!

---
