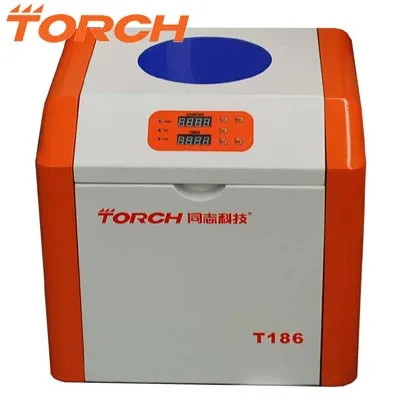

Automatic Solder Mixer Smart Solder Paste Mixing Machine

Product Description

Automatic Solder Mixer Smart Solder Paste Mixing Machine
The selling point:
1. The only industry have 3 level protection function solder paste mixer.
2. Using TORCH speciaty color spray equipment, China and Germany top engineer design product appearence, have won state patent more than 6 year.
3. The biggest solder paste mixer, casing liner using mufferler design.
4. Electronician controller designed by TORCH.
5. The most improtant using Japanese panosonic motor
Introduction:
T186 applies revolution and rotation mixing method with motor, effectively mixes the solid state and liquid state equality, to achieve perfect printing and reflow effect, save the manpower. Of course, it not need to open the pot in order to reduce the opportunity of absorbing the vapor.
Product characterristic: :
1, Quadruplicity safety design
2, Easy operation
3, Strong applicability
4, Stable and low noisy

Type	T186
Protracted Precision	Enactment time`s postponed error: <0.1%,
repeat postponed error	<0.1%
Replacement Method	replacement by power failure
Control Method	relay
Repeat action	interval is not less than 0.5 second.
Output capability	AC250V 3A; DC24V 3A
Insulation intensity	100MΩ /500DC
Medium intensity	25 kvpm
Machine life	1*1000000 eletricity life: 5*100000
Circumstance temperature	-23ºC-60ºC
Circumstance humidity	35-80%RH
Revolution	450 rpm
Rotation	900 rpm
Power supply	220V 50HZ
Power	0.3KW
Dimension	L390×W390×H390mm
Weight	36Kg

---
