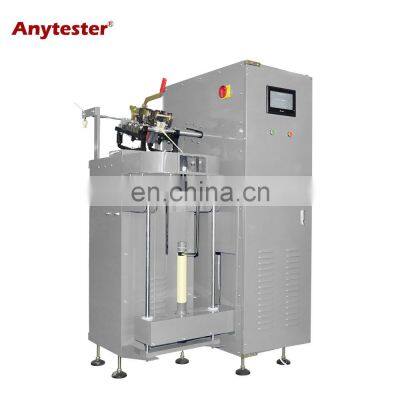

AT205 Laboratory Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT205 Laboratory Roving Machine is used to make roving from drawn sliver.
Detailed Images
Mini machine, save researching cost and easy to operate and
mai ntain;
Touch screen & PLC control;
Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
Frequency converter of high efficiency to control roll speed;
Pressurizing system :spring pressure cradle;
Three-up-three-down drafting structure;
Specification
Model
| AT205
|
Number of spindles
| 1,2, 4 or customized
|
Fiber type
| Cotton or cotton-type chemical fibers
Customized for wool
|
Twist range
| 50~250twists/meter
|
Draft range
| Approx. 2~50
|
Output capacity
| 0.25~0.5kg/h
|
Roll diameter
| ¢25mm
|
Output speed
| Max. 12m/min
|
Flyer speed
| Max.600rpm
|
Power supply
| AC220V 50Hz, 3KW
|
Packing & Delivery
Packaging
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXO
|
30% T/T in advance, paid the balance before shipment
|
FOB
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
CIF
|
L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
West Union
|
Amount lower than 5000usd
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
