HDPE PP Bottles Containers Hard Plastic Washing Machine Boxes Tank PP PE Washing Recycling Machine

Product Description

Applicable Material:
PE/PP bottles, Drums, Lumps, Pipes, Basket, Crates, household bottles, plates etc.
Introduction

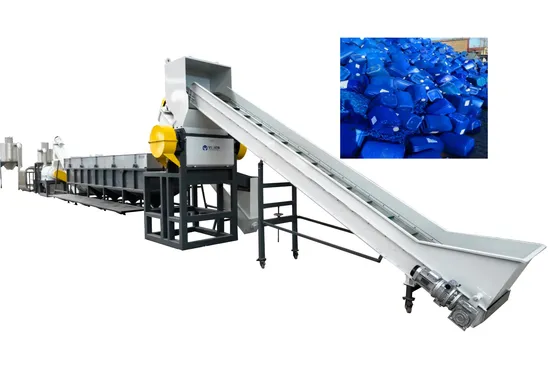

The waste hard plastic recycling and washing line produced by YILI Machinery can treat various kind of hard plastic material, such as PE or PP bottles, IBC tanks, pipes, lumps, flakes, jugs, blocks, die head material, etc. The whole production line includes shredder, crusher, frication washer, floating tank, centrifugal dryer, etc, which have capacity from 300 to 5000 kg/hr. Our hard plastic washing line can assure a precise and efficient decontamination of waste plastics with both cold and hot washing system, adopting the most efficient recycling technologies. The final products after washing can reach very high quality, which can be used alone or blended with other materials into reprocess.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
HQX500	500	160	0.5	3
HQX1000	1000	220	1.2	3
HQX2000	2000	350	3	4
HQX3000	3000	410	4	4
HQX5000	5000	500	5	6

Tech Features & Advantages
The whole production line is automatic controlling, compact process, high production efficiency, and nice cleanness; This line can separate muds, sands and other impurities from films and bags easily; With pre-treatment system such as Pre-washer, Label processing, it can highly improve quality of end product; Provide high capacity of dewatering machine with one machine capacity with 5000kg/hr Typical design of floating tank ensure not only cleanness of washed material, but also easy discharge of dirty dust by hand valve or pneumatic valves; Easy maintenance, low energy consumption, long lifetime.
Main Machines For the line
Belt conveyor

Both light and heavy duty type of belt conveyors can be chosen. Adopt gear box motor, with side walls to avoid material dropping. It has the option to install metal detector on the belt conveyor.
Shredder When the raw material is big, like plastic big drums, tanks, Lumps, die head material, we will choose shredder to make the preliminary grinding. After preliminary crushing, the material will go to second time crusher to make mine crushing. The final material sizes will be less than 12mm, which is better for pure cleaning. YILI supply series type of shredding with various capacity and functions to meet customers' choices.

Crusher
Crusher is to crush material into smaller sizes. It is with water to clean material and cool blades during crushing. Large materials are processed into small pieces in this module, which improves the washing result and makes the final product easy to packing.
Frication Washer The frication washer is designed to wash the plastic in high speed with water, which can help to remove the contaminations, dirties, greases on the material efficiently. After frication washer, the material can go to floating tank for more cleaning.
Floating tank
The sediment and metal in the material can be effectively separated through this module. All the washing wheels with different designs to meet the washing function, speed with inverter control. Bottom with magnetic valve to discharge the dirties timely according to set. Material: stainless steel.
Centrifugal Dryer Horizontal type of centrifugal dryer dry plastic flakes with high performance and low energy consumption. The grid mesh is with self-washing function by timer setting. It offers both washing and drying for material.
Hot air pipeline heating
Pipeline built in stainless steel, giving hot air inside to make further drying for material, decrease the moisture inside material.

---
