200kg/H Coconut Oil Press Machine Flax (linseed) Oil Expeller Machinery

Product Description

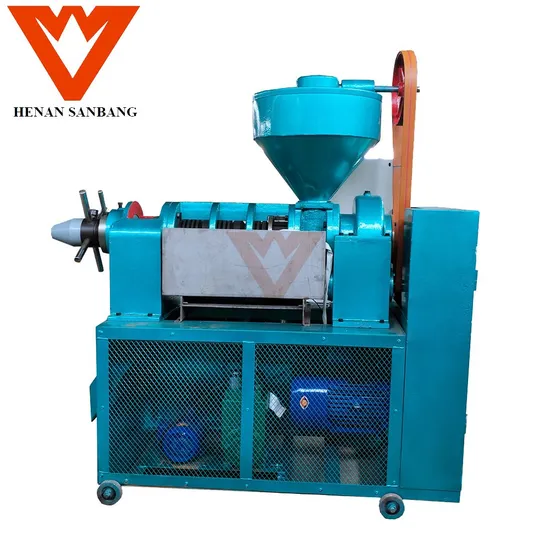

YZYX series spiral oil press
Equipment usage:
The Sanbang spiral oil press is suitable for more than 50 types of oil crops, including peanuts, soybeans, rapeseed, cottonseed, sesame seeds, autumn sunflower seeds, sunflower seeds, tea seeds, castor seeds, corn germ, grape seeds, mustard seeds, perilla seeds, Moringa seeds, rubber seeds, tung oil seeds, pomegranate seeds, pumpkin seeds, and grass seeds.

TYPE	YZYX10(95)	YZYX120	YZYX130
Capacity	3.5-4T/D	6.5T/D	8T/D
Motor	7.5 or 11KW	11 or 15KW	15 or 18.5KW
Screw diameter	φ 95mm	φ 120mm	φ 130mm
Screw speed	32-40r/min	28-40r/min	30-40r/min
Oil Content of dry cakes	<=7.6%	<=7%	<=7.6%
Weight	528Kg	680Kg	825Kg
Equipment size	1650*730*1340mm	1860*740*1275mm	2020*742*1420mm

Detailed Photos
Product Description
Features of Sanbang spiral oil press:
1. The screw oil press has high oil yield, strong adaptability, and can operate continuously, with a large single machine processing capacity
2. The clearance between the oil lines of the spiral oil press is small, reducing the amount of slag, increasing the pressure of the press chamber, and improving the oil output rate.
3. Dynamic pressing and squeezing, friction heating, short pressing time, fast oil delivery, Sanbang oil press;
Key points before starting up the Sanbang spiral oil press:
1. Fill the gearbox with oil before starting up
After the machine is installed, add lubricating oil according to regulations, check whether all components are tightened, whether the operating handle and insertion plate are flexible
3. Move the large pulley by hand to check if the machine is loose or stuck. If there are any abnormalities, they should be promptly eliminated
4. Adjust the tightness of the belt, start the motor, check if the direction of the groove wheel is consistent with the marked direction, and use the Sanbang oil press
5. After checking the preparation work, loosen the locking nut to tighten the screw to the dead center, then retreat 3-4 turns, and move forward half a turn to ensure the gap between the screw and the cake outlet Company Profile
