Abrasion Resistant Woven Fabric Heat Shrink Tubing Heat Shrink Tube Sleeve

Product Description

Product Description

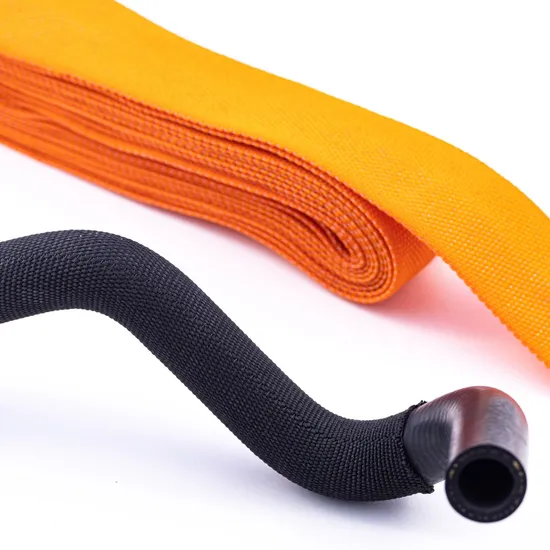

Product Description Introducing the high-quality heat shrinkable fabric from Shanghai Wellco International Limited. Our heat shrinkable fabric is designed to meet the reading habits of English-speaking natives, providing you with all the necessary information in a clear and concise manner.
Key Features:
Operating temperature range (3000 hours): -40°C to 125°C
Minimum recovery temperature: 100°C (recommended recovery temperature 110°C to 130°C)
Maximum storage temperature: 60°C
2:1 shrink ratio
Fully recoverable fabric wall thickness: Approximately 1 mm
Longitudinal change on full recovery is -10% to -20%
Product Benefits: Our heat shrinkable fabric offers a wide range of benefits to enhance your projects:
With an operating temperature range of -40°C to 125°C, it can withstand extreme conditions, ensuring reliable performance.
The minimum recovery temperature of 100°C allows for easy installation and recovery, while the recommended recovery temperature of 110°C to 130°C ensures optimal results.
With a 2:1 shrink ratio, our fabric provides a secure and tight fit, protecting your materials.
The fully recoverable fabric wall thickness of approximately 1 mm offers excellent insulation and protection.
Experience minimal longitudinal change on full recovery, ranging from -10% to -20%, ensuring dimensional stability.
Choose Shanghai Wellco International Limited for your heat shrinkable fabric needs. Our high-quality product will meet your expectations and provide you with reliable and efficient performance.

Property	Test condition(s)	Performance*
Abrasion resistance200g load, 0.3mm radius metal blade,10Hz, 10mm stroke, 144 000 cycles)	23ºC	No wear to underlying rubber hose
	80ºC	No wear to underlying rubber hose
	125ºC	No wear to underlying rubber hose
Thermal ageing	3000 hrs at 125°C	No deterioration in abrasion resistance at80°C
Low temperature flexibility	4 hours at -40°C, 10X diameter mandrel	No cracking
Cold impact	200g weight from 100mm at -40°C	No cracking
Thermal shock	100 cycles between -40°C and 125°C	No deterioration in abrasion resistance at 80°C
Fluid resistanceAntifreeze (50% ethylene glycol) Engine oil (SAE 10w/30) Mineral hydraulic fluidDetergent (1% Teepol) Brake fluid (DOT 4) Unleaded gasoline Diesel fuelBattery acid (1.25 SG H2SO4)	24 hr immersion at 23°C	No deterioration in abrasion resistance at 80°C

Size	Flat Width(mm)	ID as suplied(mm)	After shrinked(mm)
Φ6.0/3.0	12±2	>=6.0	≤3.0
Φ8.0/4.0	16±2	>=8.0	≤4.0
Φ10.0/5.0	20±2	>=10	≤5.0
Φ12.0/6.0	24±3	>=12	≤6.0
Φ14.0/7.0	27±3	>=14	≤7.0
Φ16.0/8.0	29±3	>=16	≤8.0
Φ20.0/10.0	36±3	>=20	≤10.0
Φ25.0/12.5	44±3	>=25	≤12.5
Φ30.0/15.0	53±4	>=30	≤15.0
Φ35.0/17.5	60±4	>=35	≤17.5
Φ40.0/20.0	68±4	>=40	≤20.0
Φ45.0/22.5	76±4	>=45	≤22.5
Φ50.0/25.0	85±5	>=50	≤25.0
Φ60.0/30.0	100±5	>=60	≤30.0
Φ65.0/32.5	107±5	>=65	≤32.5
Φ70.0/35.0	116±5	>=70	≤35.0
Φ80.0/40.0	132±5	>=80	≤40.0
Φ90.0/45.0	145±5	>=90	≤45.0

Certifications
Packaging & Shipping
Company Profile
Shanghai Wellco International Limited Shanghai Wellco International Limited is a professional team with 18 years of experience in R&D, production, and sales of special heat shrink tubes and other radiation crosslinking materials. We specialize in providing a wide range of products and solutions for insulation, connection, waterproofing, high temperature resistance, chemical resistance, EMI protection, and mechanical protection for wires and cables.
With a strong technical force and advanced production equipment, we offer heat shrink tubes and insulation tubes made from various materials such as modified PE, PVDF, FEP, EPDM, Silicone, FKM, FEP, PTFE, and more. Our products find extensive applications in electronic communication, automobile, high-speed rail, electric motor, aviation, medical, and other industries, providing insulation, water-proofing, electrostatic shielding, oil resistance, chemical resistance, and high-temperature protection.
All our products have passed UL certification, RoHS, and REACH standards, ensuring their quality and compliance with industry regulations.
We also offer customization options and can develop products with special requirements based on customer needs. Our production processes adhere to ISO9001 and IATF16949 quality management system standards, guaranteeing the stability and reliability of our product quality.
