CE Approval 6W 275mm Length Electrical Cabinet LED Lights

Product Description

Description of the cabinet LED Light:
This item is manufactured with premium material for durable and long-lasting use. It's easy to use and install with long service life. It can be sucked on the iron wall with its strong magnetic on the head and can also be hanged with strings.The precise design will ensure its practicability in the work of highly performance. Lamp for electrical rittal cabinet,switchgear lamp, switchboards lamp
Main technical parameters:

Model No.	TX175-4-2	TX275-6-2	TX375-8-2	TX475-10-2	TX675-14-2	TX875-16-2
Rated Voltage	AC90-240V 50Hz	AC90-240V 50Hz	AC90-240V 50Hz	AC90-240V 50Hz	AC90-240V 50Hz	AC90-240V 50Hz
Model No.	TX175-4-024	TX275-6-024	TX375-8-024	TX475-10-024	TX675-14-024	TX875-16-024
Rated Voltage	AC/DC24V	AC/DC24V	AC/DC24V	AC/DC24V	AC/DC24V	AC/DC24V
Light Intensity	>850LM	>850LM	>850LM	>850LM	>850LM	>850LM
Lifetime	50000h	50000h	50000h	50000h	50000h	50000h
Working Temperature	(-10°C~+45°C)		(-10°C~+45°C)	(-10°C~+45°C)	(-10°C~+45°C)	(-10°C~+45°C)
Illuminant Open	Manual, gate control	Manual, gate control	Manual, gate control	Manual, gate control	Manual, gate control	Manual, gate control
IP Grade	IP20	IP20	IP20	IP20	IP20	IP20
Protection Grade	I	I	I	I	I	I
Length	175mm	275mm	375mm	475mm	675mm	875mm
Width	26mm	26mm	26mm	26mm	26mm	26mm
Height	50mm	50mm	50mm	50mm	50mm	50mm
Power Cable	3M Orange	3M Orange	3M Orange	3M Orange	3M Orange	3M Orange

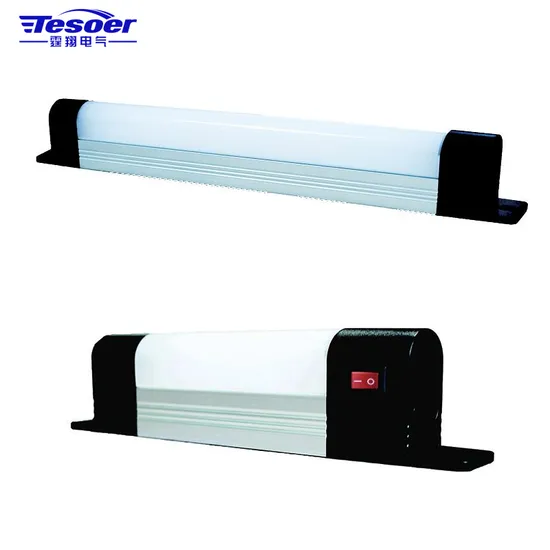

Cabinet LED Tube Light pictures:
Cabinet LED light accessory:

Model No.	Wire Length	Color	Remark
TX5020	2M	Orange	Separate port
TX5001	3M	Orange	Separate port with gate control switch

Drawing and Dimension:
Package: Standard carton packing. 50PCS/CTN
Widespread Applications:
Brief introduction of company:
Certificates Showing: FAQ
Q: What is your MOQ?
A: Generally, our MOQ is 200PCS for each model, we can discuss in details if you have special any requirements, like big quantity for the whole order but small quantity for each model.
Q:How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable after you place an order(q'ty>1000pcs) in the future.
Q:Can I add my logo on the carton and stickers?
A: Yes, we can do OEM service, but you need send your carton & sticker design to us.
Q:How long can I expect to get the sample?
A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 5-7days.
Q:What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 15 to 30 days.
Q: What is the shipping method?
A: Samples will be sent via DHL, UPS, FEDEX, TNT, EMS, etc. while bulk goods will be sent by sea or air. The goods on FOB basis can be shipped through designated forwarder.
Q:What is your term of payment?
A: By T/T, 30% at first, 70% before loading. Or irrevocable L/C at sight is accepted.
