Automatic Electrostatic Powder Painting/Spray/Spraying Coating Line

Product Description

Product Description
Specification:
1. Name: Automatic Electrostatic Powder Painting/Spray/Spraying Coating Line 2. Material: Stainless Steel 3. Capacity: As request 4. Use: Surface finishing treatment
Application:
1. Automotive, wheel, forklift 2. Cabinet, pump, lamp, panel 3. Refrigerator, air conditioner 4. Aluminum/steel profile 5. Other metal workpieces
Technical process:
Loading---Pretreatment---Water drying---Powder coating---Powder curing---Cooling---Unloading Detailed Photos
Part 1: Pre-treatment system

Pretreatment is the process of thoroughly cleaning the scale, rust, grease, dust and other dirt on the workpiece surface before powder coating, so as to make the coating powder firmly combined with the metal surface and have strong adhesion, so as to obtain high quality and prolong the service life of the product. The powder coating pretreatment include mechanical or chemical: Mechanical cleaning includes shot blasting and sand blasting.
Chemical cleaning includes removal of dirt, oil and grease, it has spray type or dip tank type.
Part 2: Water drying oven
The drying oven is to dry the wet workpiece after pretreatment, it is designed according to different heating requirements. The temperature is about 100ºC for 10-15 min.

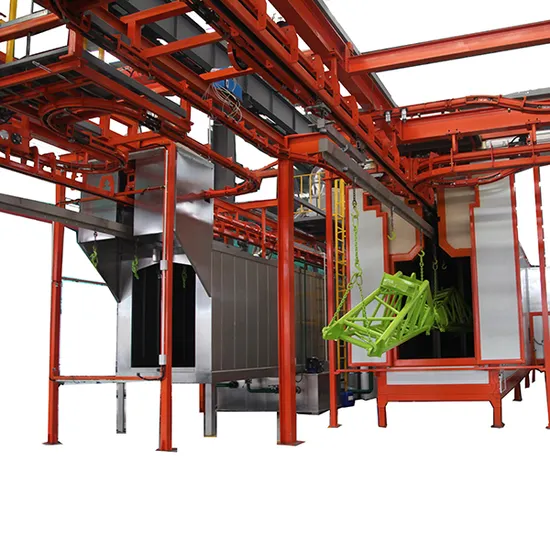

Part 3: Powder coating booth with cyclone recovery system
Our powder booth is easy to clean, with quick color change system. It is also safe to operate and has no powder overflows out of the booth. The powder recovery system could be Multi-cyclone, Mono-cyclone with filters. Now normally use is Mono-cyclone quick color change system. The material of powder booth can be PP, stainless steel, powder coated carbon steel. Part 4: Powder spray guns and reciprocator Normally one reciprocator can carry 4 spray guns(based on workpiece size) up and down in programed stroke and speed, OURS reciprocator can increase powder coating uniformity for high finishing quality.
The gun can be our companty brand(OURS series) , GEMA or other brands you like.
Part 5: Powder curing oven
Curing oven can be tunnel type or bridge type. The temperature will be 180-200 ºC for 15-20min. Heating energy could be electricity, LPG, natural gas, diesel or others. Part 6: Conveyor system
We will provide the optimal design based on customer requirements. Different conveyors can be selected according to workpiece size and weight, such as overhead chain conveyor, floor conveyor, power and free conveyor, etc. Company Profile
URS is a professional manufacturer engaged in the design, manufacture, installation, commissioning and service of coating and environmental protection equipment for about 20 years. It adopts European technology to make the company's products follow the world advanced level.
OURS COATING
Coating specialist providing turnkey projects
Focus on coating equipment for about 20 yearsMore than 10years of experience in large projects
90% of employees have more than 8 years of experience
Advanced CNC machining center
ntil now we have successively provided more than 300sets of turn-key projects for automotive, construction machinery, medical equipment, home appliances, security equipment, firefighting equipment, electrical equipment, metal furniture, logistics, building materials, hardware, fitness equipment, outdoor recreation machinery and motorcycle industries.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Pre-sales: close contact, better understanding Freely provide pre-sale technical services including technical consultation, technical exchange, etc., and accompany domestic and foreign customers to visit OURS's existing powder spraying line, wet painting line and ED coating line. During sale: quality insurance, on-time delivery The company pays attention to digesting and absorbing international and domestic advanced coating technology and process. The products are all designed and manufactured by ourselves, this not only guarantees the quality, but also reduces the equipment manufacturing cost, operation cost; so that we can deliver on time, provide better service to our customers.
After-sales: regular return visits, timely maintenance Send skilled and experienced engineers to install the equipment and provide training services, including on-site training and professional training, theoretical training and practical training, technical training and management training. One-year warranty is available. If problem occurs, we will respond promptly: guide online or dispatch engineers for inspection.Packing & Delivery

Package:
Size	Non standard equipment, need to be installed.
Weight	It depends on design
Packaging Details	40HC containers The normal package is film and carton. Or pack it according to customers special request.

---
