YK-150-2200 2 Ply Corrugated Cardboard Production Line

Product Description

YK-150-2200 2 Ply Corrugated Cardboard Production Line
Product Description Main technical parameters and requirements in production line
Type:YK-150-2200 single corrugated cardboard production line:
MAX. Produce width:2200mm Design speed:150m/min Economic speed:90-120m/min Note:Production line speed test paper should meet the following requirements:(Equipment surface temperature not lower than 172 ºC above)
Paper grade of not less than B grade Paper moisture content of about:11%±2%
Facial tissue:100-250g/m2 core paper:100--180g/m2 Flute-type combination:A ,C, B, E(Or a choice by the customer) Steam about500Kg/Hr, Maximum pressure:1.2Mpa, Common pressure:0.8-1.1Mpa Power supply:380V 50Hz Three-phase four-wire system Equipment installed total power:about 90KW Actual electric consumption:about30KW Equipment area:about 30m×11m×5m(Specific length of foundation Figure prevail) Equipment out of paper orientation:according to user's factory to determine drive left or right Equipment applicability,Available in A, B, C class domestic or imported paper Paper Customer-owned section Steam heating system:proposal with 1000Kg / Hr of a steam boiler , Pressure:1.25Mpa steam pipeline. Air compressed machine,air pipeline,glue conveying pipe. Power supply,wires connected to the operation panel and line pipe. Water sources,water pipelines,buckets and so on. Water, electricity, gas flush mounting civil foundation. Test with the base paper,corn starch (potato), Industrial use caustic soda,borax and other material. Oil equipment, lubricating oil, hydraulic oil, lubricating grease. Detailed Photos
Product Parameters

Specification	Equipment name	UNIT	QTY	Remark
ZJ-V5B	Hydraulic shaftless mill roll stand	a	2	The spindle¢240mm,hyperbola heavy rocker,toothed chuck,multi-disc ventilated disc brakes,hydraulic drive lift,left and right translation,for medium. Rail length 6000mm,trolley used 10mm plate welding.
	Paper trolley	a	4
RG-1-900	Preheater	a	2	Roller¢900mm,including certificate of pressure vessel. Electromotion adjustment angle.

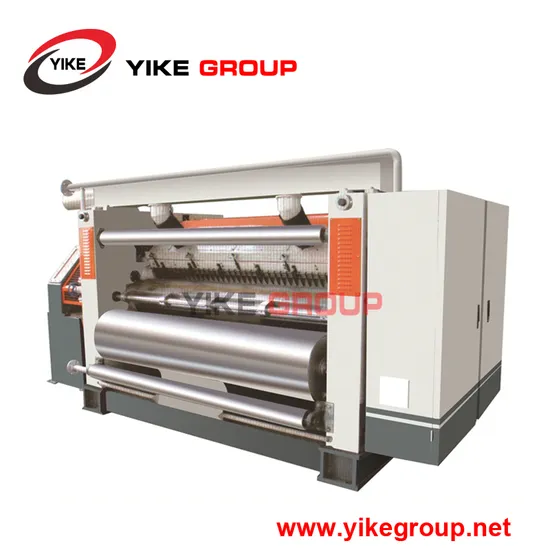

SF-320C	Fingerless type single facer E and B flute	a	2	Corrugated main roller ¢320mm,material with 48CrMo alloy steel, tungsten carbide dealing,Tile roll modular group lifting transfer. Airbag ballasting structure, import main bearing,PLC automatic control glue,HMI touch screen,Breaks automatic parking relief,steam heating way.
ZDF	Conveyor bridge	set	1	Independent frequency motor drive lifting, transmission. Main beam is connected with the 20th channel, 16-beam, No. 63 angles, columns, etc. Both sides of the security fence, the word pedals, ladders.
DHE-150	Single corrugated the aspect Cutter(Spiral knife cross cutting, full servo longitudinal cutting, hanging basket stacking)	a	1	Full AC servo control spiral knife structure, touch screen display. The take-up machine adopts graded and adjustable counting output cardboard, and the maximum stacking length is 1.6 meters. Both the paper pulling and paper feeding and the horizontal output motors are frequency conversion speed regulation, full servo independent motor, and the order change time is 1-3 seconds.
Discount Offer: Contact us to get a discount price Container: 3x40HQ FOB TIANJIN PORT Payment: 30% T/T in advance, balance paid before shipment Delivery Time: Within 3-4 months after deposit Installation service: The engineer could go to your factory for installation and machine training Machine video: https://youtu.be/siHXRVRM-7A

Company Profile Cangzhou Yike Carton Machinery Co., Ltd. was established in January of 2002, which is a high-tech enterprise, manufacture and sales of high level automatic corrugated cardboard production line, flexo printer slotter die cutter machine, Casemaker, Folder Gluer Machine, Flute Laminator and so on.
Our Group implement the ISO 9001-2008, in strict on factory management. All products series pass CE certification.
YIKE GROUP with professional technology, serious management, and advanced equipment, we provide high quality products and timely aftersale service.
We devote to be the World leading partner of the corrugated packaging industry, more than 200 machines running in UK, Italy, Spain, Saudi arabia, Russia and so on. Thousands machines in China.
YIKE GROUP wish to achieve resplendence with you hand in hand, shoulder to shoulder in the future.
