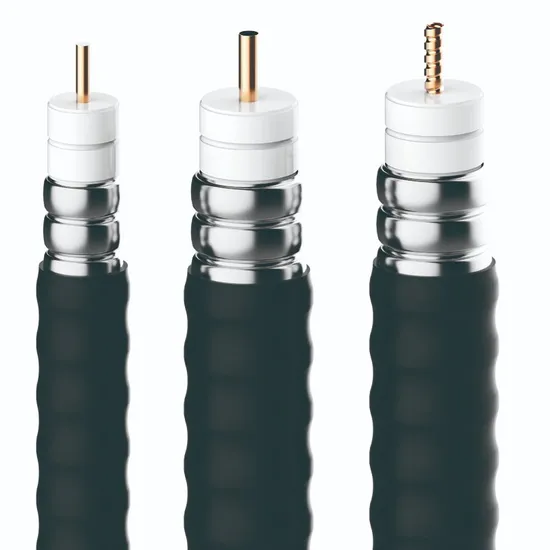

1/2 Inches RF Coaxial Cable with Copper or Aluminum Conductor

Product Description

1/2 Inches RF Coaxial Cable with Copper or Aluminum Conductor
The 50 ohm RF cable uses ultra-high foam polyethylene with a foaming degree of about 80%. It has low attenuation, low temperature coefficient and good stability against temperature changes. It is mainly used for wireless mobile communication, antenna feeder, microwave transmission, broadcast communication, etc. The base station transmitter, the connection between the receiver and the antenna or other high frequency areas as a low loss, low VSWR signal transmission line.
Full range 1/2",1/4",3/8",5/8",7/8",1-1/4",1-5/8" and its super flexible RF cable
Applications:1) Land mobile and cellular radio2) Earth station antenna jumper cables3) Jumpers for equipments room and antenna connection4) Military data links5) VLF, AM and FM radio broadcast systems6) Point to point terrestrial microwave7) Airborne and shipboard radar systems8) Tactical, restoration and portable communication systems Cable characteristics:1. Low attenuation, low standing wave ratio (VSWR)2. Effective shielding property3. Good bending performance 4. Superior service life
Product Details:

super flexible 1/2" cable(fire retardant)	Specification
Part number
Inner conductor material	Copper plated aluminum 3.6±0.05mm
Outer conductor material	Corrugated copper tube(spiral) 12.00±0.15mm
Dielectric type	foam PE 9.10±0.15mm
Jacket type	LLDPE Low smoke Fire retardant 13.6±0.20mm(max)
Cable weight,kg/km	<210kg/km
Tensile strength N	650
Min bending radius(single);mm	25
Min bending radius(multiple);mm	50
Number of bendings min(nominal)	20
Installation temperature	-25 to +65ºC
Operating temperature	-25 to +55ºC
Impedance	50+1.0Ω
Cut off frequency,GHz	10
Dielectric breaddown voltage,kV	5
Attenuation dB/100m@900MHz	10.6
Attenuation dB/100m@1800MHz	15.5
Attenuation dB/100m@2100MHz	17
Operating power KW@900MHz	0.8
Operating power KW@1800MHz	0.5

Accessories Connector:

Connector	Attachment
N Male	Clamp Type	Crimp Type
4.3-10 Male	Clamp Type	Crimp Type
TNC Male	Clamp Type	Crimp Type
DIN Male	Clamp Type	Crimp Type

Our Service: 1) Quick Response --All inquiries will be replied within 24 hours. 2) Professional Quotation --All prices will be quote according to customers' detailed specifications & requirements. 3) OEM & ODM Service 4) Can print your own brand on the jacket printing with foot or meter marking. 5) Make customized designs for stickers, drums, outer cartons, etc. 6) Stable Quality --All materials and products passed restrict QC procedures,comply with international standards. 7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after Confirmation in usual. Good After-sales Service --We chose the fastest vessel to POD for delivery our goods to clients, --All Documents will be issued according to clients' instructions, to save troubles from local customs. --Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients. FAQ: Q1: What kind of cable do you produce? A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc Q2: What's your MOQ? Can you offer free samples? A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side. Q3: What's your delivery time? A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order. Q4: What's your payment term? A: We accept T/T, L/C,Western Union.Other payments accept through negotiation. Q5:What's your trade term? A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term Q6: Where is your factory located? How can I visit there? A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China. 1 hour drive from HangZhou XiaoShan International Airport 3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo

---
