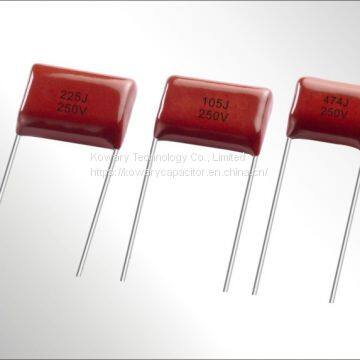

| Features | Metallized polyester film, non-inductive wound construction. |
| Wide capacitance range, small size, and light weight. | |
| Long life due to self-healing effect. | |
| Applications | Suitable for blocking, bypass and coupling of DC and signals to VHF range. |
| Widely used in filter and low pulse circuits. | |
| Specifications | REFERENCE STANDARD: IEC 60384-2 |
| OPERATING TEMPERATURE: -40°C - +85°C | |
| CAPACITANCE RANGE: 0.001uF - 10.0uF | |
| CAPACITANCE TOLERANCE: ±5%(J), ±10%(K), ±20%(M) | |
| RATED VOLTAGE: 100VDC, 250VDC, 400VDC, 630VDC | |
| DISSIPATION FACTOR: 1.0% max. at 1KHz, 20°C | |
| DIELECTRIC STRENGTH: 160% of rated voltage for 5 sec. | |
| INSULATION RESISTANCE: UR≤100V, 15,000MOhm min. for C≤0.33uF UR≤100V, 5,000MOhm*uF/C min. for C>0.33uF UR>100V, 30,000MOhm min. for C≤0.33uF UR>100V, 10,000MOhm*uF/C min. for C>0.33uF (20°C, 1min) | |
| Notes | Customization for special specification and requirement is available. Kindly contact with info at for product datasheet. Thanks! |
