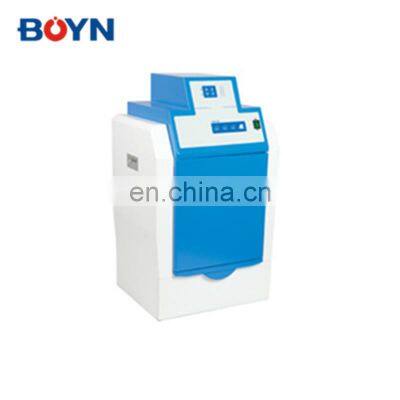

JY04S-3E High-resolution gel documentation Imaging system
JY04S-3E
Characteristic feature
• CCD with lower lux and high-resolution, easy to get dim stripes and real-time browse, whole-screen display and simple to operate:
• Six time zoom lens and simple to enlarge and shrink gel photos.
• The center position indicator, which can ensure the gel is placed in the center position.
• Intelligent control box:
• You can realize the control of the zoom, focus, aperture, UV light and white light through panel key.
• Safety function for your eyes that automatically shuts down the UV light when the door is opened and reactivates the UV light when the door is shut.
• Timed shut down: The UV light protection system automatically shuts down the lights after 15 minutes to maximize the life of lamp and vitreous.
• The zoom lens is protected with RS232 interface.
• Drawer-style gel platform, convenient to observe, operate, and cutting gel.
• Transferring plate changes UV-light into white-light.
• Using a multi-layer gel-filter effectively filters background noise.
• You can realize the control of the zoom, focus, aperture, UV light and white light through computer mouse.
• Regular and reliable system convenient to maintain and exchange parts.
Specifications
Model
| JY04S-3C
| JY04S-3E
|
Effective pixels
| 1280×1024
| 2560×1920
|
Pixel density
| 10 bit
| 10 bit
|
Pixel size
| 5.4×5.4(um)
| 5.4×5.4(um)
|
Resolution
| 1.4 megapixels
| 5.0 megapixels
|
Signal to noise ratio
| ≥56db
| ≥56db
|
Sensitivity
| Can detect the double chain DNA of EB staining below 20pg
| Can detect the double chain DNA of EB staining below 20pg
|
Camera
| low illumination and high resolution digital CCD
| low illumination and high resolution digital CCD
|
Zoom lens
| F=1:1.2,2/3 inch 6 times zoom lens
| F=1:1.2,2/3 inch 6 times zoom lens
|
Filter
| 590(nm)
| 590(nm)
|
UV light transmission area(W×L)
| 250×200(mm)
| 250×200(mm)
|
Visible light transmittance area(W×L)
| 250×210(mm)
| 250×210(mm)
|
Transmission UV wavelength
| 302(nm)
| 302(nm)
|
Reflectance UV wavelength
| 254,365(nm)
| 254,365(nm)
|
Transmission UV lamp power
| 302nm(8W)
| 302nm(8W)
|
Reflectance UV lamp power
| 254nm(11W),365nm(11W)
| 254nm(11W),365nm(11W)
|
Volume(L×W×H)
| 470×405×820(mm)
| 470×405×820(mm)
|
Weight
| 29.0kg
| 29.0kg
|
