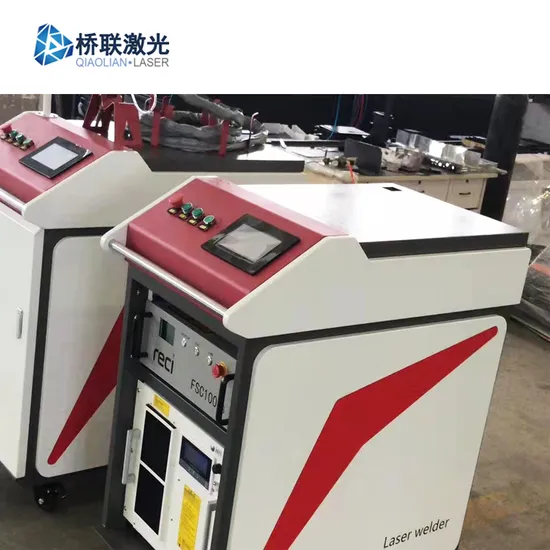

Handy 3in1 1.5kw Fiber Laser Steel Welding Equipment with Cutting and Cleaning Function

Product Description

Handy 3in1 1.5kw fiber laser steel welding equipment with cutting and cleaning function Features: 1.We integrate laser power, water chiller, software control etc,with small floor area, convenient movement, strong functionality, meeting ergonomic design, applicable to various working environment scenarios;
2.It can weld all kinds of metal materials such as carbon steel, stainless steel, aluminum plate, copper plate etc.
3.It is suitable for tailor welding, overlap welding, internal and external fillet welding, circular arc welding, irregular shape welding, etc;
4.The welding seam is beautiful, uniform, free of welding scar and discoloration, and does not need to be polished in the later stage. Save labor hours.
5.The welding is firm, and the weld strength reaches or even exceeds the base metal itself;
6.One time welding forming, basically no deformation, meeting the requirements of high quality products
7.Welding speed is fast, 2-10 times faster than traditional welding, a machine can save at least 2 welders a year.
8.The operation is simple, easy to learn and fast to start, the operator's technical threshold is not high, and the labor cost is saved.
9.Low cost, power consumption is only 1 / 10 of that of general argon arc welding or gas shielded welding.
10.Laser welding consumables less, long life.
11.Red light positioning, more accurate welding position.
12.Equipped with 10 meter optical fiber cable, more flexible and convenient operation.
13.Safer and more environmentally friendly.
14.No wire feeding or automatic wire feeding, two functions are optional.

Advantages
1. Three modes of self-fusion welding, wire feeding and cutting can be selected at will;2. Tailor welding, fillet welding, stitch welding, straight and arc omnipotence;3. Adopt international famous brand laser power.4. The welding head designed with ergonomics is only 0.8KG in weight, which fully considers the applicability of the welding process and the comfort of long-term use.5. Support process library storage, saving debugging time.6.6 kinds of light emission modes, suitable for different scenes.7. Adjustable light spot (0-5) mm.8. The control screen directly digitally sets the parameters of the wire feeder, and the wire feeding is smooth.9. Support delivery (0.8\1.0\1.2\1.6mm) stainless steel, carbon steel, aluminum welding wire.10. Perfectly replace some traditional argon arc welding, electric welding on thin stainless steel plate, iron plate, aluminum plate etc.
Weld penetration table:

Model	Carbon steel	Stainless steel	aluminium	red copper
1000w	2.06mm	2.68m	2mm	---------
1500w	2.77mm	3.59mm	3mm	0.2mm
2000w	3.59mm	4.57mm	4mm	0.3mm
3000w	4.79mm	6.87mm	4mm	1mm

Welding type:

Fillet welding vertical welding	Tailor welding flat welding	Overlap welding

Smooth and beautiful weld, reduce subsequent grinding process, save time and cost.
