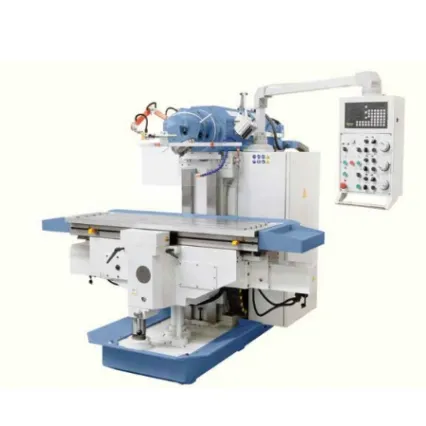

High Quality Universal Milling Machine 3 Axis Multifunctional Milling Machine

Product Description

Product Description
Main Feature
a,Table 3 axes with ball screws, high precision
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,Table with an extra supporting column, big load, high accuracy
F, It can mill any angle surface through front half-sphere by swivelling milling head.
Mechanical change speeds head stock

universal milling head

electronic hand wheel+DRO operating box

Servo motor + ball screw

Double supporting column

Standard electrical components

Schneider electrical components

Specifications	Unit	X5746
Table size	mm	460*1235
T-slots(NO./width/pitch)	mm	5*18*80
Table travel (X/Y/Z)	mm	900*650*450
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640
Table rapid speed	mm/min	2200/2200/1100
Distance between spindle nose and table surface	mm	50-500
Distance from spindle center line to column	mm	36-686
Main motor power	Kw	5.5
Feed motor	Kw	AC servo motor X/Y:18NM; Z: 27NM
Max load	Kg	800
Overall size	mm	1835*2362*2090
weight	kg	4000
