High Performance Crankshaft Mud Pump for F1600 Drilling Pump

Product Description

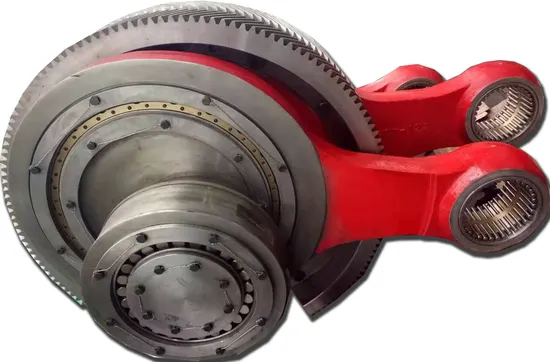

Crankshaft Assembly
The crank shaft assembly consists of crank shaft, ring gear, connection rod (with bearing) and the main bearing. The working clearance of bearing is pre-determined by the fitting precision of the installed shaft and the relevant holes.

F-1600 MUD PUMP CRANKSHAFT ASSEMBLY

Item	Quantity	Name	Drawing No.
1	2	Main bearing cover	AH3700-01.01C.00
2	1	Main bearing sleeve (right)	AH37001-01.02
3	2	Sealing gasket	AH36001-02.03
4	2	Inner stop collar	AH36001-02.04
5	3	Outer stop collar	AH37001-01.03
6	3	Connection rod	AH37001-01.04
7	1	Positioning ring (I)	AH36001-02.07
8	1	Hollow crankshaft	AH36001-02.08A.00
9	1	Positioning ring (II)	AH36001-02.09
10	1	Big ring gear	AH37001-01.05D.00
11	12	Bolt M39×3-6g×140	T52-3007
12	2	Isolating ring	AH36001-02.12
13	1	Main bearing sleeve (left)	AH37001-01.06
14	2	Stop collar	AH37001-01.07
15	2	Baffle plate	AH36001-02.15
16	4	Main bearing bolt	AH36001-02.16C
17	If demanded	Shim set	AH36001-02.17
18	2	Screw M16×120	T52-6006K
19	12	Bolt M39×3-6H	T57-3005.0
20	72	Bolt M16×40	T57-7003K
21	28	Bolt M16×45	GB5780-86
22	3	Eccentric wheel bearing	AH37001-01.08.00
23	2	Main bearing	AH37001-01.09.00
24	28	Gasket 16	GB848-85
25	40m	Locking steel wire F1.5	GB343-82
26	3m	Locking steel wire F	GB343-82
27	90ml	Thread anaerobic locking sealant	Le Tai glue 243
28	2	Screw M16×100	T52-6004K

---
