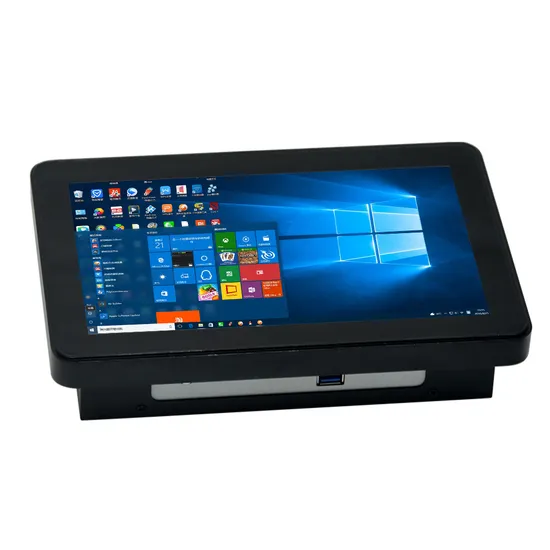

10.1 Inch Touch Screen Panel PC

Product Description

Open Frame 10.1 Inch Touch Screen Panel PC Monitor All in One POS PC Wall MountProduct Description
Self-service Kiosk,Advertising Signage,Whiteboard,Touch Table,Payment ATM,POS,Vending ect.
Industrial / Outdoor IP66 / Indoor IP65 / Anti Glare / Anti Reflection / Anti Fingerprint ect.
Vandalproof / Waterproof / Anti Sunlight / Dustproof / AR / AG / AF ect option;
Structure & Design
Openframe / Wall mounted / Embedded / Landscape / VESA and Brackets Supported ;
Black and White Color Metal Aluminum Outframe,Flat No Bezel No Groove Outlook;Touch all-in-one PC* Flat screen with IP65 sur-face waterproof* AUO Brand new grade A TFT LCD panel* Plug and Play* 250cd/m2~1000cd/m2 high brightness optional* Customizable* CE, FCC Functionalities:
1. Stable operation2. Accurate Touch Response3. Durable4. Scratch-resistant glass surface5. Anti-glare6. Vandal-Proof (Tempered glass)7.superior Image Clarity resolution
LCD Panel1280*1024 Resolution (Optional)1500 : 1 Contast (Optional)300 ints Brightness (Optional)Touch ScreenProjected Capacitive Touchscreen10 Points TouchUSB / RS232 / H-DMI / RJ45/ LAN / COM / Power Ports ectPC ConfigurationStandard with W indow 7 OS / J1900 CPU / 8G RAM / 128G SSD (Optional)A ndroid 7.1 OS / RK3288 Board / 2G RAM / 8G SSD (Optional)OthersRegular Size with 8~65 inch Industrial IP66 Outdoor Surface Waterproof StandardCamera/B-luetooth/WIFI/GPS/SD Card/3G/4G/Facial Recoginition all ok to
supportWaterproof,Outdoor,Shockproof,Anti Glare,Anti Reflection,AG,AR,Tempered Glass,Vandalproof,Anti explosion,Industrial Standard ectfunction optionIntel I3/I5/I7 and Cheap A-ndroid OS ok to supprtedOSD Control
Adjusting with OSD control
Five different keys are well-defined for operation . They are labeled on the keypad.
A)[Power] Key is designated for Power On/Off
B)[Menu] Key is designated for Menu/Enter function depending on the selected item. Pressing [Menu] can invoke OSD menu. After that, [Menu] is also an entry key.
C)[+] key is designated for selection function in up direction in OSD menu and also to increase the value on selected function,Directly use + Key is to increase brightness.
D)[-] key is designated for selection function in down direction in OSD menu and also to decrease the value on selected function,Directly use - Key is to decrease brightness.
E)[AUTO] key is designated for invoking AUTO ADJUST function at any time once is pressed for H-position, V-position, Pixel Clock and Phase for an optimal image.
Other All In One PC Parameters• Design and Development Ability of Main Board and IO Board
• Full-fit Display Screen, Design and Production Capacity of Different Surface Coatings (AG Anti-glare/AR Anti-reflex/AF Anti-fingerprint/AS Anti-smudge)
• Integration Capabilities of Computer Systems, Operating Systems, Applications, and Peripheral Devices
• Customized System Design, Appearance Design, Counter Design, User Experience Optimized Design Ability
• Design Capability of Anti-electromagnetism and Anti-static Strengthened with Different Application Environments
• Development Capability of Software Interface for System Hardware Management
• Integration and Application of RFID Technology
• BIOS/OS Customization and Management Ability

	CCT101	CCT104	CCT121	CCT150	CCT170	CCT156
Size	10.1"	10.4"	12.1"	15"	17"	15.6"
Ratio	16:9	4:3	4:3	4:3	5:4	16:9
Brightness	300	400	400	250	250	300
Contrast	800:1	700:1	600:1	500:1	1000:1	400:1
Input	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	1280×800	800×600	800×600	1024×768	1280×1024	1366×768
Viewing angle	80°/89°	80°/60°	60°/70°	80°/80°	80°/85°	60°/70°
Touch screen	PCAP	PCAP	PCAP	PCAP	PCAP	PCAP
PC board	I3/I5/I7/J1900 computer board, Android board ,TV board optional
	CCT185	CCT190	CCT215	CCT236	CCT270	CCT320
Size	18.5"	19"	21.5"	23.6"	27"	32"
Ratio	16:10	5:4	16:9	16:9	16:9	16:9
Brightness	250	250	250	250	300	400
Contrast	1000:1	1000:1	3000:1	1000:1	3000:1	3000:1
Input	VGA+DVI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI	VGA+DVI+HDMI
Resolution	1366×768	1280×1024	1920×1080	1920×1080	1920×1080	1920×1080
Viewing angle	80°/85°	80°/85°	89°/89°	89°/89°	89°/89°	89°/89°
Touch screen	PCAP	PCAP	PCAP	PCAP	PCAP	PCAP
PC board	I3/I5/I7/J1900 computer board, Android board ,TV board optional

Other IR Touch Monitor

USB Touch interface, 1/2/4/6/10 points touch optional, Windows/Linux/Android OS, Plug &play, tempered glass
	COT104-IPF02	COT121-IPF02	COT156-IPK03	COT185-IPK02	COT215-IPK02	COT220-IPK03
Size	10.4"	12.1"	15.6"	18.5"	21.5"	22"
Ratio	4:3	4:3	16:9	16:10	16:9	16:10
Brightness	400	400	300	250	250	250
Contrast	700:1	600:1	400:1	1000:1	3000:1	1000:1
Input	VGA+DVI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI	VGA+DVI	VGA+DVI+HDMI
Resolution	800×600	800×600	1366×768	1366×768	1920×1080	1680×1050
Viewing angle	80°/60°	60°/70°	60°/70°	80°/85°	89°/89°	80°/85°
Touch screen	IR	IR	IR	IR	IR	IR
	COT236-IPK03	COT270-IPK02	COT320-IPK02	COT420-IPK03	COT550-IPK03	COT650-IPK03
Size	23.6"	27"	32"	42"	55"	65"
Ratio	16:9	16:9	16:9	16:10	16:9	16:9
Brightness	250	300	400	450	390	400
Contrast	1000:1	3000:1	3000:1	1300:1	1000:1	1400:1
Input	VGA+DVI+HDMI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
Viewing angle	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°
Touch screen	IR	IR	IR	IR	IR	IR

Other SAW Touch Monitor

USB/RS232 Touch interface, 1points touch, Windows/Linux/Android OS, SAW/Resistive optional
	COT080-APF02	COT084-APF02	COT104-APF02	COT121-APF02	COT190-APF02	COT156-APK03
Size	8"	8.4"	10.4"	12.1"	19"	15.6"
Ratio	4:3	4:3	4:3	4:3	5:4	16:9
Brightness	300	300	400	400	250	300
Contrast	500:1	500:1	700:1	600:1	1000:1	400:1
Input	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI+HDMI
Resolution	800×600	800×600	800×600	800×600	1280×1024	1366×768
Viewing angle	50°/70°	50°/70°	80°/60°	60°/70°	80°/85°	60°/70°
Touch screen	SAW/Resistive	SAW/Resistive	SAW/Resistive	SAW/Resistive	SAW/Resistive	SAW/Resistive

	COT185-APK02	COT215-APK02	COT220-APK03	COT236-APK03	COT270-APK02
Size	18.5"	21.5"	22"	23.6"	27"
Ratio	16:10	16:9	16:10	16:9	16:9
Brightness	250	250	250	250	300
Contrast	1000:1	3000:1	1000:1	1000:1	3000:1
Input	VGA+DVI	VGA+DVI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI
Resolution	1366×768	1920×1080	1680×1050	1920×1080	1920×1080
Viewing angle	80°/85°	89°/89°	80°/85°	89°/89°	89°/89°
Touch screen	SAW	SAW	SAW	SAW	SAW

Other PCAP Touch Monitor Parameters

Size	7"	8"	10.1"	10.4"	12.1"	13.3"	15"	15.6"	17"	18.5"
Part Number	COT070-CFK02	COT080-CFF02	COT101-CFK03	COT104-CFF03	COT121-CFF03	COT133-CFK03	COT150-CFF03	COT156-CFK03	COT170-CFF03	COT185-CFK03
Ratio	16:9	4:3	16:9	4:3	4:3	16:9	4:3	16:9	5:4	16:9
Brightness	300	250	300	400	400	300	250	220	250	250
Contrast	500:1	500:1	800:1	700:1	600:1	800:1	500:1	800:1	1000:1	1000:1
Input	VGA+DVI/HDMI	VGA+DVI/HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	800*400	800*600	1280*800	800*600	800*600	1920*1080	1024*768	1920*1080	1280*1024	1366*768
Viewing angle	70°/70°	70°/70°	80°/89°	80°/60°	60°/70°	85°/85°	80°/80°	85°/85°	80°/85°	85°/80°

Size	19"	19.5"	21.5"	23.6"	23.8"	27"	32"	43"	55"	65"
Part Number	COT190-CFF03	COT195-CFK03	COT215-CFK03	COT236-CFK03	COT238-CFK03	COT270-CFK03	COT320-CFK03	COT430-CFK03	COT550-CFK03	COT650-CFK03
Ratio	5:4	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9
Brightness	250	250	250	250	250	300	400	400	450	400
Contrast	1000:1	1000:1	3000:1	1000:1	1000:1	3000:1	3000:1	1200:1	1200:1	1200:1
Input	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI	VGA+DVI+HDMI
Resolution	1280*1024	1600*900	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080	1920*1080
Viewing angle	80°/85°	85°/80°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°	89°/89°

Other Touch ScreenPCAP Touch Screen
-5" - 110",Support Custom made
-5 /10 Points touch
-USB /RS232 /IIC interface
-EETI /ILITEL /SIS Controller Board
-1.8/2/3/4/6/8mm Tempered Touch Glass
-Outdoor Industrial Waterproof Vandalproof
-G+G /Nano Ag Metal ,Support custom-make
-CE, FCC, RoHS,ISO9001,ISO14001
-Windows /Linux /Android /I mac OS / Raspberry pi
-OK To add Normal Glass on the Top to Touch
SAW Touch Screen
-7- 32'',Custom-Make Supported
-Vandalproof,Waterproof,Dustproof,Anti-Glare
-3/4/6mm Tempered Touch Glass
-5V /12V Voltage,USB+RS232 Interface
-Windows /Linux /Android /I mac /Raspberry pi OS
-Plug and play ,1 Years Warranty
-ELO/3M/GeneralTouch/KeeTouch/ETWO/OneTouch Driver OK

Our Factory• Dongguan CJTouch Electronic Co., Ltd, located in Dongguan, the city famous withits advanced manufacturing, was built on 2009.• It's a high-tech enterprise mainly specialized in researching, manufacturing,selling and repairing SAW,IR and touch whole products and in providing touch solutions.• Products : SAW and IR touch screen and touch monitor, all in one PC and touch kiosk.• Products to be used in : Gaming & gambling, POS, Medical equipment, Kiosk field and etc .• Accept OEM/ODM business.• Producing Capacity : 150 Thousand sets / yearOur Advantages
-> 10 Years Professional Chinese Factory-Cheaper Labor & Low Cost Diverse Materials- Plenty of Stocks for Different Size,MOQ is 1 pcs- Short Lead Time( 2 days for Regular Type )- DHL/UPS/Fedex/TNT/EMS ect Fast Offical Safety- 1 Years Warranty for Touchscreen- Strong Design Team to Custom made Your Unique Solution- CE,FCC,RoHS,ISO9001,ISO14001 ect Certifications- 7*24 Hours After-Sale Service Engineer Team Our Team
Our Customer
116 Countries,Top 10 Customer :
-Brazil
-Australia
-India
-Russian
-Argentina
-Indonesia
-Canada
-Spain
-Saudi Arabia
-KZ(Kazakhstan)
What We Offer
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single & Multi-touch screens (custom sizes available)
Single & Multi-touch monitors (custom sizes and functions available)
All-in-one computers
ODM/OEM services
SAW ( Surface Acoustic Wave) Touch ScreenSAW ( Surface Acoustic Wave) Touch MonitorIR ( Infrared) Touch ScreenIR ( Infrared) Touch MonitorAll in one touch PCInteractive Kiosk
-SAW / IR / Capacitive / Resistive Touch Screen
-PCAP Nano Touch Foil / Touch Film
-Open frame / Desktop LCD Monitor
-ELO / 3M Compatible Touch Monitors
-Industrial / Outdoor / Waterproof Solution
-POS Touch All in one Computer (AIO)
-Indoor /Outdoor Advertising Signage
-Electronic Education Smart White board
-Self-service / ATM / Information Kiosk etc
Application fieldGaming / casino / ATM Kiosk / Hotle / KTV / TV
Industrial / Public inquiry / Coffee / Bar
Entertainment / Hospital / Restaruant / Advertising
Transport and Ticketing / Banking
Hospitality / Meeting / Teaching
Customizsed Solutions
Business Institutions: Market ,Store ,Hotel , Restaurant
Financial Institutions: Bank , Insurance ,Government
Public Services: Hospital , School , Telecom , Post Office
Public Places: Transportation , Exhibition , Museum
Real Eatates: Apartment , Villa , Business Building
Entertainment Places: Cinema , Gym , Nightclub , Golf
Daily life place: Cafe , Station , Business hall,
Customized Solutions & Applications etc
