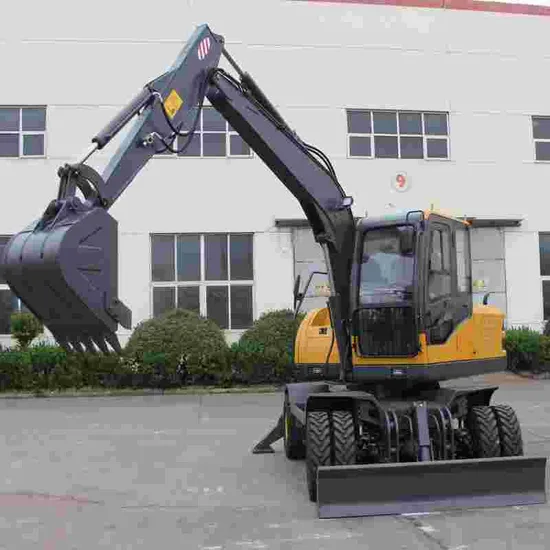

Heavy Machinery 8 Ton Hydraulic Digger Wheel Excavator with 55 Kw Engine

Product Description

8ton Wheel Excavator Configuration features of wheel excavator: 1.Electrical system: equipped with color liquid crystal display, with self-inspection, monitoring, emergency alarm, good man-machine interaction, high configuration of electrical control software, higher reliability.
2.Power system: The advanced turbocharged exhaust engine has sufficient power reserve, which can give full play to the engine's power, achieve perfect matching and reduce power loss.
3.Hydraulic system: Shimadzu hydraulic pump and Eaton hydraulic valve are imported, with small power loss, fast action, good coordination of compound actions, high efficiency and energy saving, high reliability and long service life.
4.Walking system: use weighted front and rear drive axles and gearboxes to provide higher bearing capacity.
5.Cab: new cab, brand-new interior design, broad vision, spacious and bright, humanized front gear mechanism, equipped with high-grade adjustable suspension seat, silicone oil shock absorption and superior driving environment.
6. Cooling system: parallel cooling installation is adopted, which is easy to clean, install and disassemble and has high cooling efficiency.
Product Sepcifications:

Model	Main Specifications
8 ton wheel excavator	Xin Chai pressurization 55kw engine,Eaton valve,Shimadzu pump,Breaker system,Bucket,Dozer blade,8.25 tyre,Air conditioner

Item		unit	specification
machine weight		kg	7400
bucket capacity		m3	0.3
overall size	total length	mm	6410
	total width	mm	2150
	total height(top of cabin )	mm	2835
	tail rotation radious	mm	2084
	wheelbase	mm	2600
	min clearance ground	mm	318
specification	rated power	kw/rpm	55/2500
	Maximum torque	N.m/rpm	269/1610
	hydraulic pump	gear pump	Shimadzu
	The forerunner of pump	Mpa	3.5
	Pressure of work	MPa	20
	rated flow	L/min	135
	hydraulic oil tank	L	127.9
	Fuel tank capacity	L	149.03
	Rotary speed	rpm	12
	work speed	km/h	30
	bucket digging force	kN	46
	Maximum traction	kN	47
	Climbing ability	%	59%
	Dozer blade(width*height)	mm	2150/500
Working range	boom length	mm	3500
	arm length	mm	2000
	max digging distance	mm	6300
	max digging depth	mm	3650
	max digging height	mm	6550
	max dumping height	mm	4770
	The minimum radius of gyration	mm	2084

Packing or Shipping
1. Packed in containers or according to customer's requirements.
2. You can entrust our freight forwarder, you can also use your own freight forwarder, and we can also provide door-to-door transportation.
1.What's the MOQ? 1 piece or unit.

2. How about the delivery time?
Based on order quantity, normally it takes 20 days for production. Only 3 to 7 days if we have stock on your request size.

3. How many years have you been producing hydraulic breakers and parts?
Over 20 years.

4. Quality & Service:
There will be strict inspection and testing for every order before shipping out. Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded). Free replacement will provide once the failure confirmed caused by our product quality.

5. What's the payment term?
T/T (Telegraphic Transfer) or Western Union. Pictures of products and packages will be sent to our customers before balance is paid.

6. Can you produce according to customers' design?
Yes, we can do customized products.

7. How about the package?
Standard exporting package.

---
