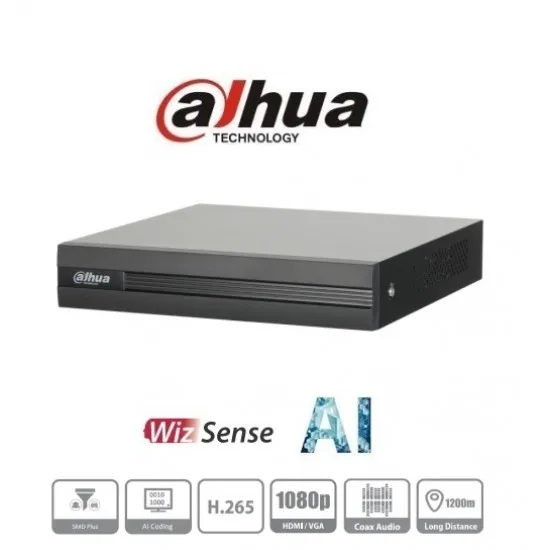

Dahua 8 Channel 8 CH 4 CH Penta-Brid Analog Security 1080P Lite 1u Digital Video Recorder NVR DVR Xvr1b08h-I

Product Description

Product Description XVR1B08H-I, XVR1B04H-I, XVR1B16H-I 8 Channels Penta-brid 5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports Full-channel AI-Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
> Up to 8 channels video stream (analog channel) SMD Plus
Product Parameters

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

SMD Plus by Recorder

8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC

IP Camera Input

Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.

Encoding Capacity

Main Stream: All channel 5M-N@(1 fps-10 fps); 4M-N/1080p@(1 fps-15 fps); 1080N/ 720p/960H/D1/CIF@(1 fps-25/30 fps) Sub stream: D1/CIF (1 fps-15 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps-6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS, Android

Interoperability

ONVIF 21.06; CGI Conformant

Browser

Chrome IE9 or later Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection, alarm,POS

Recording Playback

1/4/8/9

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback

Alarm

General Alarm

Motion detection, video loss, tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

Ports

Audio Input

1-channel RCA 8-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.

USB

2 USB ports (USB 2.0)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12VDC, 1.5A

Power Consumption

<7 W

Net Weight

0.57 kg (1.26 lb)

Gross Weight

1.05 kg (2.31 lb)

Product Dimensions

198.3 mm × 203.4 mm × 41.5 mm (7.81'' × 8.01'' × 1.63'') (W × D × H)

Packaging Dimensions

332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W× D × H)

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

0%-90% (RH)

Installation

Desktop

Certifications

FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Packaging & Shipping

Shipping	DHL, Fedex, UPS, Sea shipping
Warranty	2 years
OEM services	Yes!!! you can OEM with your own logo
Technical support	Yes!!! we have technical team

Company Profile We are a professional wholesales of CCTV Surveillance products, we not only provide products, services, technical support, but also provide solutions.
Our main products come from Top3 manufacturers in China's security industry, Hikvision and Dahua and IMOU. including these products: Network camera, PTZ camera, Network video recorders, Explosion-Proff and Auti-Corrosion, Turbo HD camera, Digital video recorders, Access control, Video intercom, Alarm, Display and Control, Transmission, Thermal camera, Intelligent traffic, Storage, Accessories, etc...
Our goal is to: Find a long-term business partner, and establish a long-term and stable win-win cooperation relationship. Help you win the market! Welcome to contact us! contact Yulia for better services.

Certifications
FAQ
1)Why choose us?
Comptetive Price:Our company has built up friendly relations with Dahua,Hikvision, IMOU since 2015.and we work with factory directly.
Friendly and fast service:We have professional tech-support team to deal with problems before and after sales. Don't be afraid if you meet probelms.We are here!

2)When will you ship my order?
Products are popular,so inventory is always changing. Please contact us before you pay and we will confirm the date with you.

3)Can I installate the security cameras by myself?
Of course!There is always a user manual in the packaging box.You can contact us directly if you meet any problems.We are here!
4)How about warranty?
2-year warranty period(since the date you receive the order). some products are 3 years and some are 5 years, welcome to confirm with us.
5)How about the shipping cost?
Shipping cost is depend on weight, we have very cost-effective agent for you.
6)Your products sell to whom?
Retail and wholesale customers are both welcomed.

If interested in this camera,pls contact us today and know the most latest information!
