Medium Voltage Single Core XLPE Insulated Aluminum Conductor Underground Power Cable

Product Description

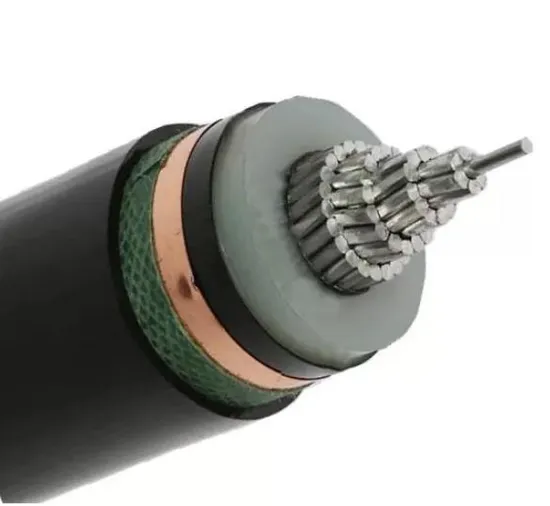

Construction
Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying
single core cable in magnetic ducts is not allowed.

Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJLSV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJLSV only)
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage:up to 36kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250ºC) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core

Test voltage	6 / 10kV	[kV]	21 / 5 min.
	12 / 20kV	[kV]	42 / 5 min.
	18 / 30kV	[kV]	63 / 5 min.
Temperature range	in motion		-5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 60332-1-2

Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always
the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and
non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-
proof material on the outsides of drum according to customer's requirement.
