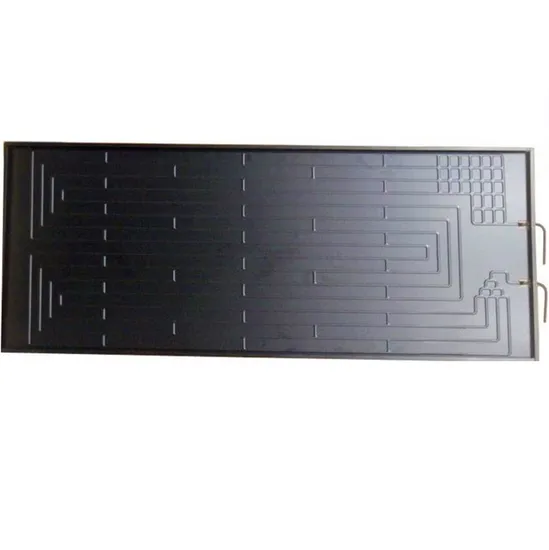

Thermodynamic Solar Water Heater Roll Bond Panel

Product Description

Solar Energy Systems Kit Solar Panel ,Thermodynamic Solar Panel ,Solar Collector Panel / Plate ,themodynamic absorber , Aluminium solar water heater panel , Thermodynamic atmospheric panel .

Thermodynamic panels can absorb ambient heat from the air and rain as well as the sun.They use refrigerant gas which works like a fridge in reverse to generate hot water for your home in all conditions.
Advantage :
· Do not nee sunlight to generate heat , they can work day or night in all conditions including rain or snow .
· Can provide all hot water requirements up to 55°C
· Significantly reduce CO2 emissions, making yr home greener
· More smaller and more discreet than solar panels and do not need to be roof mounted
· Easy to install .
Material : Aluminium 1060/1050
Size :1700*800,2000*800,2000*1000,1700*500,1700*900,1700*990mm
Max Size : 1150mm(width)*2300mm(length)
Thickness : 1.5~2.0mm
Key process : Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing

Raw material Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.4 2.5mm Structure Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing Technical Standards 1) Size: width 590 (max), length 2050 (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. Performance 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements. Performance 3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture ≤5 /100cm3 Residual impurity ≤1 /100cm3 Residual mineral oil ≤100 /100cm3 Residual chlorine ≤5vloppm Residual paraffin ≤3 / Biggest single impurity ≤0.5mm

Specification of coating

Coating thickness thickness of coating40 90 μ m Hardness of coating ≥2H Impact of coating 50cm?kg/cm impact, no crack Adhesion of coating ≥two grade Flexibility of coating Around R=3D bend 180?, no crack or no fall off Color tolerance of powder painting E≤1.5

Please feel free to contact with me.

---
