High Frequency Straight Seam Welding Pipe Making Machine

Product Description

Product Description

8 Inch API 5CT standard tube, ASTM A 53 Steel tube, construction tube making machine
1: Main Technical Parameters of ZY219 Tube Making machine

Raw material	hot rolled steel, galvanized steel
Round tube outer diameter	88.9mm-219mm
Wall thickness Round tube	2.0mm-8.0mm
Tube welding speed	50m/min

2: Basic Production flow

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table→

The above production flow is based on the standard, according to different standard of the pipe, it may add hydro testing machine, end facing machine, ECT testing equipment etc.


3: Market distribution

At the beginning, we are manufacturing and selling the Steel Pipe Making Machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Making Machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.

4: Technical Advantage

Pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Making Machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.
Product Parameters
5: Tube Making Machine specification

Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Steel Pipe Making Machine Specification
Mill Model	OD range (mm)	Thickness range(mm)	Line Speed(m/min)
ZY-16	7.6-16	0.3-1.0	120
ZY-20	10-25.4	0.3-1.5	120
ZY-32	12.7-38.1	0.6-1.8	120
ZY-45	16-50.8	0.7-2.0	110
ZY-50	20-63.5	0.8-3.0	90
ZY-60	25.4-76.2	1.0-3.2	80
ZY-76	31.8-88.9	1.2-3.75	80
ZY-89	33.4-101.6	1.2-4.5	75
ZY-125	50.8-130	2.0-5.0	60
ZY-165	76.2-168	2.0-6.0	50
ZY-219	88.9-219	2.0-8.0	50
ZY-273	89-273	3.0-12.0	40
ZY-325	89-325	3.0-12.7	40
ZY-406	114-406	4.0-16.0	40
ZY-508	219-508	4.0-19.1	40
ZY-610	273-610	4.0-19.1	40
ZY-660	273-660	4.0-22	40

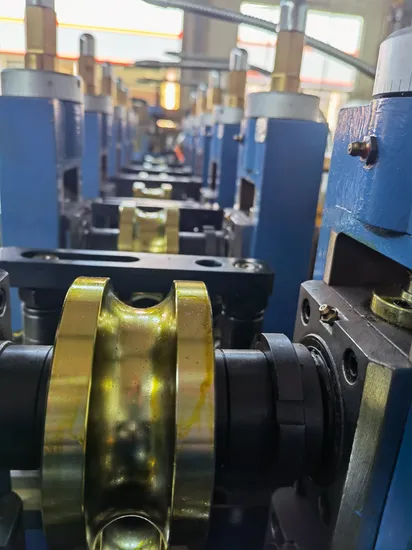

6: Picture reference
Our Company
Zhangjiagang Zhongyue Metallurgy Equipment Technology Co.,Ltd is located in Xiangshan Road,Jiangang Town,Zhangjiagang City,Jiangsu Province,China.With the registered capital of RMB20,000,000 yuan,the company specialize in manufacturing high-frequency precision welded pipe lines,H-Beam steel pipe line,slitting machine,cold roll forming machine,cold rolling machine,angle steel machine,cold cutting saw machine etc...At present,the annual production capacity is more than 150 sets.
During more than ten years of continuous effective development, the company has already become quite well competitive in term of market share,technology,human resources and geographical location in its field.To maintain its competitiveness in the ever fierce competing market, the company has kept upgrading itself by improving innovation system ,establishing human resources platform, building harmonious relationship with customers,improving quality of product and full-range of services.Hence,now,as one of the most popular and favorite vendors of our customers,we are the most advanced and play a leading role in field of domestic market for product quality and achievement in new products R&D and market development.
The company products are widely applied in the industries of welded pipe manufacturing,sports products,fitness equipment,medical apparatus and instruments,children's goods,furniture,household electrical appliances,vehicles,ship building,petroleum transportation and power station etc...

---
