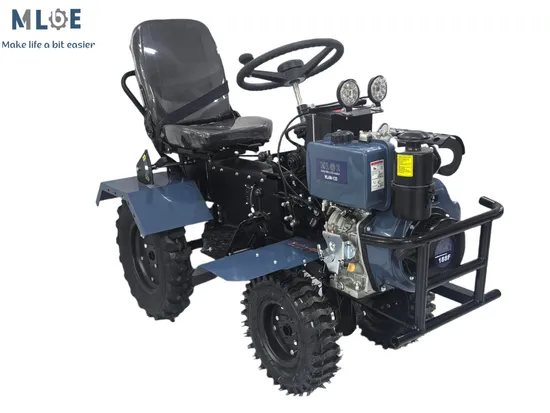

Mlbe Hot Selling Single Cylinder Vertical Four-Stroke 4X4 Mini Tractor

Product Description

Detailed information:
Basic Information:

S.N	ITEM		UNIT	SPECIFICATION
1	MODEL		\	ML4W-135DF
2	STRUCTURE		\	SEAT
	DRIVE		\	4×4
3	ENGINE	MODEL	\	192F
		STRUCTURE	\	gasioline,Single cylinder,vertical,four-stroke,direct injection,air-cooled
		RATED POWER	kW	6.7
		RATED REVOLUTION	r/min	3600
		STARTING SYSTEM	\	MANUAL/ELECTRIC START
		OIL TYPE	\	GASOLINE
4	MACHIANE SIZE(L×W×H)		mm	1680×970×1200
5	STANDARD ACCESSORIES		\	40PCS DRYLAND BLADES(4PCS *5 GROUPS *2 SIDES)
				400-8 wheels (pair)
				500-12 wheels (weight bearing type) (pair)
				500-12 iron wheels(pair)
6	N.W		kg	248
7	G.W		kg	275
8	PACKAGE		mm	1580×770×880
9	ROTARY BLADES		\	DRYLAND BLADES
10	DRIVE TYPE		\	FULL-GEAR DRIVE
11	TURNING SYSTEM		\	BEND AND TURN
12	CONNECTING SYSTEM		\	UNIVERSAL
13	REAR GEARBOX	REVOLUTION -WALKING	r/min	3 GEAR:106.6 2 GEAR: 62.5 1 GEAR: 15.6 REVERSE GEAR:22.3
		REVOLUTION -ROTARY WORKING	r/min	3 GEAR: 26.8 2 GEAR: 15.7 1 GEAR: 3.9 REVERSE GEAR:5.6
		WHEEL MODEL	\	500-12
		SPEED -WALKING	km/h	3 GEAR:11.05 2 GEAR: 6.48 1 GEAR: 1.62 REVERSE GEAR:2.31
		OIL CAPACITY	L	2.2
14	FRONT GEARBOX	REVOLUTION	r/min	3 GEAR:145.2 2 GEAR: 85.1 1 GEAR: 21.3 REVERSE GEAR:30.4
		WHEEL MODEL	\	400-8
		SPEED	km/h	3 GEAR:11.05 2 GEAR: 6.48 1 GEAR: 1.62 REVERSE GEAR:2.31
		OIL CAPACITY	L	2.2
15	ROTARY BLADES	REVOLUTION	r/min	3 GEAR:145.2 2 GEAR: 85.1 1 GEAR: 21.3 REVERSE GEAR:30.4
		MAX. DIAMETER	mm	180
		QTY OF BLADES	PCS	40
16	WORKING WIDTH		mm	1350
17	WORKING DEPTH		mm	100-200
18	CLUTCH TYPE		\	FRICTION DISC TYPE
19	CLUTCH CONDITION		\	OPEN
20	ROTATY TYPE		\	FRONT ROTARY
21	PRODUCTIVITY		hm2/h.m	≥0.04
22	FUEL CONSUMPTION		kg/hm2	≤30

Accessories for MINI tractor use:
About us: Chongqing MLBE Mechanical & Equipment Co., Ltd. is 100% invested and controlled by MLBE Mechanical & Equipment Pty., Ltd., located in
Wollongong, Australia. As a Sino-Australian multinational corporation, MLBE Mechanical & Equipment always focuses on providing high-quality,
new designs and moderately priced products to customers worldwide. 'Make life a bit easier ' is the mission that drives us to focus and concentrate on product details and quality.

Based on advanced Australian engineering technologies and China's more than 20 years of mature manufacturing features,
MLBE consistently prioritizes customers' needs and requirements and provides accessible, highly reliable solutions for customers.
MLBE values customers' ideas and mindsets and utilises our professionalism to provide highly safe and comfortable products with innovation.

In 2021, MLBE built its first official office in Chongqing Centre, Yuzhong District.
In 2022, MLBE brand products were sold in Europe, South America, the Middle East, and Middle Asia, and two exclusive selling offices were established.
In 2023, MLBE started developing patent-designed M-type (Kaman Rider) series products and successfully launched them into the market.
In 2024, MLBE had increased investment in new production base construction, new product developments, product differentiation, R&D and QC control, and global fairs.
Now MLBE has two professional production lines, five senior engineers, five experienced international sales and more than fifty skilled workers.
In the meantime, more new products will be released in October 2024 at the Canton Fair and other fairs.
We warmly welcome you, our esteemed business partners, to join us and write about our bright future together!

The main products we're currently focusing on include, but are not limited to, power generators, engines, water pumps, tillers, lawnmowers,
lawn mower tractors, Cultivators, moto sapa, motoblock, motoculture, mini tractor, agricultural machines.

Technical Support: MLBE Technical advantage

As a multinational corporation, MLBE always focuses on providing highly customized and accessible solutions for global agricultural customers.

With more than 20 years of manufacturing experience and the Australian professional engineering team's support, MLBE utilises our professionalism to combine customers' ideas with mechanical traditional engineering & manufacturing features to conceive patent functions with shining designs for customers worldwide.

Case analysis:
In the previous projects for ICRC (International Committee of The Red Cross), we innovated professional accessories for tillers, which accuracies were controlled within millimetres and grams and a tolerance rate was controlled at 1%. Which caused the tiller's tilling width and depth were just matched the client's requirements accordingly. This also laid a solid foundation for our long-term cooperation since 2019.

Need technical assistance?

Contact the MLBE professional engineering teamto get your customized technical support.

Factory & Production Line Show:
Package and shipping:
Exhibition:

---
