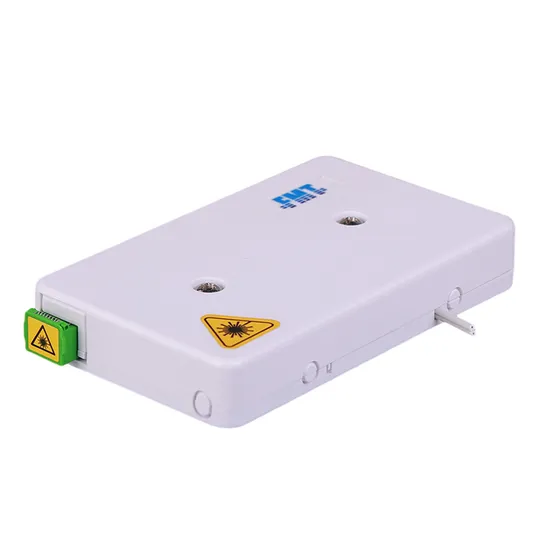

2-Core Compact Outdoor Hybrid Outlet Box for Indoor Wall Mount Use

US$0.50-1.00 10,000 Sets (MOQ)

Basic Info.

Model NO.
GP-T1170
Certification
CE, ISO, RoHS
Condition
New
Material
ABS or UL-V0 ABS
Dimensions
117X70X18mm
Color
White
Patching Capacity
2 Sc or LC Duplex
Telephone Outlet
Rj11
IP Rating
IP20
Installation Method
Wall Mount
Transport Package
Carton
Specification
200 PCS/CTN
Trademark
None
Origin
Zhejiang, China
HS Code
8536790000
Production Capacity
100000 Sets/Week

Product Description

Application Designed for outdoor installations, offering fiber splicing and telecom connections. Suitable for wall-mounted setups, supporting RJ45, RJ11, RG6, and fiber optic connections. Product Description The GP-T1170 Outdoor Hybrid Outlet is a compact and multifunctional termination box designed for fiber optic and telecom connections. Measuring 117×70×20 mm, it accommodates up to 2 SC adapters and supports keystone connectors such as RJ45, RJ11, RG6, and UTP. Built with durable plastic and self-adhesive neoprene backing, it ensures secure mounting and IP54-rated protection. This versatile outlet allows for up to 2 fusion or mechanical splices with a bend radius of 30mm, making it an ideal choice for outdoor wall-mounted installations.
Features & Benifits Compact Design: Dimensions of 117×70×20 mm, ideal for space-saving outdoor applications. Durable Material: Made with high-quality plastic and self-adhesive neoprene for secure installation. Flexible Connectivity: Supports 1 or 2 SC adapters and keystone connectors for RJ45, RJ11, RG6, or UTP. Splicing Support: Allows for up to 2 fusion or mechanical splices with 45mm protectors. Environmental Protection: IP54-rated, safeguarding against dust and water ingress. Bend Radius Protection: Maintains a minimum curvature radius of 30mm to ensure signal integrity. Easy Installation: Suitable for wall-mounted setups, either embedded or directly on the wall. Detailed Photos Specification
Part No. GP-T1170
Dimension 117x70x18mm
Cable Ports 2
Suitable Telephone Outlet RJ11
Number of Adapter 2 SC
Mount Way Wall Mount
