Dw50CNC Pipe Bender Machine Chinese Factory

Product Description

Steel pipe cnc auto bending machine for sale
Product Description: Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (B) & Rotation (C) in a complete automatic cycle. Ranging from 10mm up to 220mm OD these machines are suited for use in a wide range of pipe manufacturing sectors and industries. Available in different versions, there's all three axis are automatic in a single stack machine.There's also the option to add push bending function, left and right bending function, more stacks,and so on. The series comes equipped with easy-to-operate touchscreen controls, or with the latest user-friendly 3D bending software. This stores tooling configuration, allows spring-back compensation, and boasts anti-collision technology, amongst other features.

No.	The main technical parameters	Parameter Value	Unit	Remarks
1	Maximum bending capacity	Ф38×2	mm
2	The maximum feed distance	1800	mm
3	Maximum bending angle	190°	degree	Bending accuracy: ±0.1°
4	The maximum bending number	20
5	Rotation	0~±360°	degree	Angle accuracy: ±0.1°
6	Feeding accuracy	±0.1	mm
7	Bending program memory capacity	500	unit

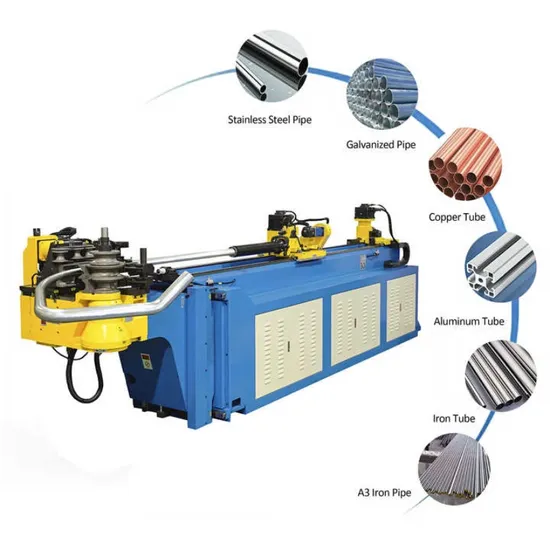

Product show
Feature * Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.
* Fully hydraulic clamping on clamp die and pressure die.
* Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
* Feeding (B-Axis): Controlled by Servomotor.
* Rotating (C-Axis): Controlled by Servomotor.
* Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
* Air cooling system ensures the equipment long-time work stably under the high temperature.
* CE&ISO 9001:2000.
Bending sample show
Packing & Shipping
Warehouse
After sales-service After the machine is installed in buyer's factory, 365 days later, if any parts are damaged because of quality,
the seller will give new parts for free
If any problem happens to the machine, Seller agrees to assist the Buyer in repairing the machine
through email or phone call. In case the presence of Sellers technician is required for repairing the machine,
the Buyer will pay for the tickets and accommodation of visiting technician.we need to know several parameters before recommend the suitable model
1. what product are you going to produce with pipe bending machine
2. what is the pipe material ?
3. what is the pipe OD and thickness
4. what is the bending radius
5.how many angles on one pipe
6 what is the pipe length?
5. if you have bending drawing, please send it to me, so that we can know your technical requirement . just like the bending
drawing as aboved

---
