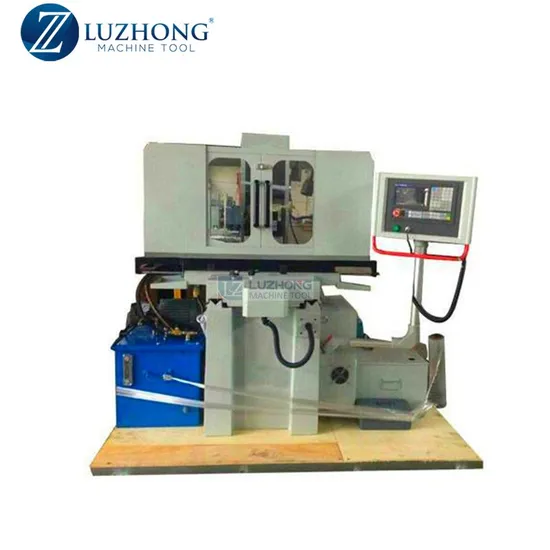

MK820 three axis surface cnc surface grinder machine with high precision

Product Description

MK820 three axis surface cnc surface grinder machine with high precision
Product Description
Product Parameters

Model			MK820
Working table	Table Size(L × W)	mm	480×200
	Max movement of worktable(L × W)	mm	530×220
	T-Slot(Number×Width)	mm	1×14
Grinding Wheel	Distance from table surface to spindle center	mm	450
	Wheel size(Outer diameter×width×Inner diameter)	mm	φ200×20×Φ31.75
	Speed(r/min)	r/min	2850
Feed amount	Longitudinal speed (left and right)of working table	m/min	3-25
	Cross feed amount(front and rear) of working table	m/min	0.5-15
Motor power	Spindle motor	kw	1.5
	Coolant pump motor	W	40
Working precision	The parallelism of working surface to base level	mm	300:0.005
	Surface roughness	μm	Ra0.32
Weight	Net/Gross	kg	900/1000
Magnetic chuck size		mm	400x200
Max grinding height		mm	80
Max grinding width		mm	180
Overall dimension(L×W×H)		mm	1680x1140x1760
Package dimension(L×W×H)		mm	1630x1170x1940

Detailed Photos
Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
