Super Fast Recovery Rectifier Diode 1A 400V Sf14

Product Description

1A,400V-SUPER FAST RECOVERY RECTIFIER-SF14
1.Datasheet:
2.Products list:

SUPER FAST RECOVERY RECTIFIERS
TYPE	Maximum Peak	Maximum Average	Maximum Forward	Maximum Reverse	Maximum Forward		Maximum	Package
	Reversee	Rectified	Prak Surge Current	Current	Voltage		Reverse
	Voltag	Current	@8.3ms Superimposed	@VRRM TA=25ºC	TA=25ºC		Recovery Time
	VRRM	I(AV)	IFSM	IR	IF	VF	trr
	V	A	A	μA	A	V	ns
SF11	50	1.0	30	5.0	1.0	0.95	35	DO-41
SF12	100	1.0	30	5.0	1.0	0.95	35
SF13	150	1.0	30	5.0	1.0	0.95	35
SF14	200	1.0	30	5.0	1.0	0.95	35
SF15	300	1.0	30	5.0	1.0	1.25	35
SF16	400	1.0	30	5.0	1.0	1.25	35
SF18	600	1.0	30	5.0	1.0	1.70	35
SF21	50	2.0	75	5.0	2.0	0.95	35	DO-15
SF22	100	2.0	75	5.0	2.0	0.95	35
SF23	150	2.0	75	5.0	2.0	0.95	35
SF24	200	2.0	75	5.0	2.0	0.95	35
SF25	300	2.0	75	5.0	2.0	1.25	35
SF26	400	2.0	75	5.0	2.0	1.25	35
SF28	600	2.0	75	5.0	2.0	1.70	35
SF31	50	3.0	125	5.0	3.0	0.95	35	DO-201AD (DO-27)
SF32	100	3.0	125	5.0	3.0	0.95	35
SF33	150	3.0	125	5.0	3.0	0.95	35
SF34	200	3.0	125	5.0	3.0	0.95	35
SF35	300	3.0	125	5.0	3.0	1.25	35
SF36	400	3.0	125	5.0	3.0	1.25	35
SF38	600	3.0	125	5.0	3.0	1.70	35
SF31G	50	3.0	125	5.0	3.0	0.95	35	DO-201AD (DO-27)
SF32G	100	3.0	125	5.0	3.0	0.95	35
SF33G	150	3.0	125	5.0	3.0	0.95	35
SF34G	200	3.0	125	5.0	3.0	0.95	35
SF35G	300	3.0	125	5.0	3.0	1.25	35
SF36G	400	3.0	125	5.0	3.0	1.25	35
SF38G	600	3.0	125	5.0	3.0	1.70	35
SF51	50	5.0	150	5.0	5.0	0.95	35	DO-201AD (DO-27)
SF52	100	5.0	150	5.0	5.0	0.95	35
SF53	150	5.0	150	5.0	5.0	0.95	35
SF54	200	5.0	150	5.0	5.0	0.95	35
SF55	300	5.0	150	5.0	5.0	1.25	35
SF56	400	5.0	150	5.0	5.0	1.25	35
SF58	600	5.0	150	5.0	5.0	1.70	35
SF51G	50	5.0	150	5.0	5.0	0.95	35	DO-201AD (DO-27)
SF52G	100	5.0	150	5.0	5.0	0.95	35
SF53G	150	5.0	150	5.0	5.0	0.95	35
SF54G	200	5.0	150	5.0	5.0	0.95	35
SF55G	300	5.0	150	5.0	5.0	1.25	35
SF56G	400	5.0	150	5.0	5.0	1.25	35
SF58G	600	5.0	150	5.0	5.0	1.70	35
ER500	50	5.0	150	5.0	5.0	0.95	35	DO-201AD (DO-27)
ER501	100	5.0	150	5.0	5.0	0.95	35
ER502	200	5.0	150	5.0	5.0	0.95	35
ER503	300	5.0	150	5.0	5.0	1.25	35
ER504	400	5.0	150	5.0	5.0	1.25	35
ER506	600	5.0	150	5.0	5.0	1.70	35
ER600	50	6.0	150	6.0	5.0	0.95	35	DO-201AD (DO-27)
ER601	100	6.0	150	6.0	5.0	0.95	35
ER602	200	6.0	150	6.0	5.0	0.95	35
ER603	300	6.0	150	6.0	5.0	1.25	35
ER604	400	6.0	150	6.0	5.0	1.25	35
ER606	600	6.0	150	6.0	5.0	1.70	35
MUR840	400	8.0	150	8.0	5.0	1.25	35	TO-220AC
MUR860	600	8.0	150	8.0	5.0	1.70	35
MUR1040	400	10.0	150	10.0	5.0	1.25	35	TO-220AC
MUR1060	600	10.0	150	10.0	5.0	1.70	35
MUR1640CT	400	16.0	150	16.0	5.0	1.25	35	TO-220AB
MUR1660CT	600	16.0	150	16.0	5.0	1.70	35
MUR2040CT	400	20.0	150	20.0	5.0	1.25	35	TO-220AB
MUR2060CT	600	20.0	150	20.0	5.0	1.70	35
Note:Trr Conditions:IF=0.5A IR=1.0A Irr=0.25A
PART NUMBER SUFFIXED "G" IS GLASS PASSIVATED

3.Package:
4.Reliability Test List:

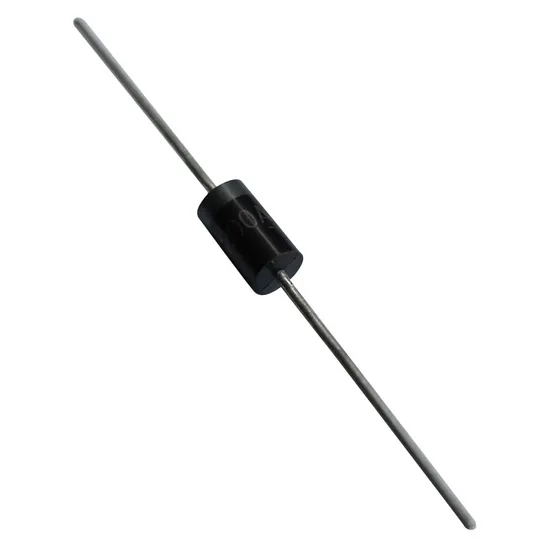

5.Product Picture:

6.Our Fair:
7. FAQ:
1, Are you Manufacturer or trading company?
We are a manufacturer only in diode, bridge rectifier and automotive rectifier diode. We could supply competitive price and fast delivery and good quality with prompt service, we guarantee that we will reply to our customers within 1-12H once we receive the inquiry, we will do the utmost to help to reduce your cost.

2. May I have some samples for testing?
Yes, sure. We offer free samples for you and you only need to cover the international freight for samples. when you have 1st order with us, we will deduct the freight from your first order.
3. What about the delivery ?
Usually the lead time is about 1-2 weeks after receiving payment. For many normal parts, we have the quantity in stock and we have the system to ensure the delivery will be on time.
4. What about the payment terms ?
Order amount is less than $10000: 100% Advance.
Order amount is between $10000 and $20000: 50% Advance and 50% before shipment.
Order amount is more than $20000: 30% Advance and 70% before shipment.
Old customer with good reputation: NET 30days.

5. What about the shipment terms ?
FOB Shanghai by air;
CFR your city seaport by sea;

We also work with DHL, FEDEX, TNT and etc. For large quantity , it's up to you to choose the freight forwarder and if you need, we could assist you.
If you have any question or need techical support, please do not hesitate to contact us, we will try our best to serve you.

---
