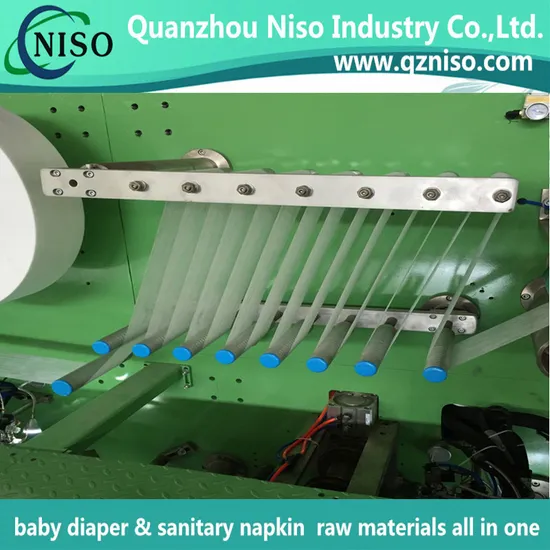

Full-Servo Control Pull-up Baby Diaper Production Line

Product Description

Full-Servo Control Pull-up Baby Diaper Production Line
Technical Parameter

Model	YNK500
Type	Full Sevro type
Capacity	500-600pcs/min
Machine size	L:20-36m,W:5-7m,H:5-6m.(According to customer's plant size)
Operation area	L:20-36m,W:5-7m,H:5-6m
Install power	350KW
Air compressor	3000-4000NL/min
Total weight	60T
Operator Qty	1-2
Packing	Antirust oil & PE film cover & Seaworthy wooden box.
H.S Code	8441809000
Origin	Fujian,China
Standard	CE,ISO,SGC

Main Function Features
1.Servo motors driving with PLC control and touch screen;
2.High-speed teeth-like crusher;
3.SAP auto adding with amount control;
4.Servo unwinding,auto-tension control and auto splicing for raw material;
5.Auto reject for wasted & rejected product,auto detect & alarm for material exhausted;
6.Phase adjusting during running without stop;
7.Diaper auto counting & stacking.
8.With the LED display screen,displaying urgent stop indication and current speed
9.The machine can produce 3 size pull up diapers.
10.Rat of finished product:97%(not including the defective products caused by glue applicator,feeding of raw materials and joints of raw materials.
Optional device:
1:Perfume spraying unit
2:Wetness display function
We also offer the following type

model	driven mode	speed(PCS/MIN)	weight(T)	capacity	machine size(L*W*H)
YNK500SV	full servo driving	500-600	60	330kw	31*8*5.5m
YNK450HSV	semi-servo driving	400-450	60	240kw	27*8*5.5m
YNK400FC	inverter driving	400-450	60	190kw	27*8*5.5m

Our service
Excellent After-sale Service

1. You can send technician to learn operate machine before the machine delivery for 1- 2 month. We can offer food and accommodation.
2. When machine arrives your workshop, we will send technician installing, testing the machine and training your workers.
3. If you need one Chinese technician work for you, we can help you find one work for you.
4. Life-long after service for Full-servo automatic baby diaper manufacturing machine.
5. We are Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.

6.We can do full support for your complete project, from machine's manufacturing and installment, supplying raw materials, designing your factory layout, workers training to final production.
7.We have served customers from over 100 countries in the world untill now.
8.We can offer you very good machines and service at good price.
(we have our own parts processing workshop)
9.We are factory manufacturer, not trading company.

Factory
Packing & Delivery
If any interesting,pls feel free to contact wendy

---
