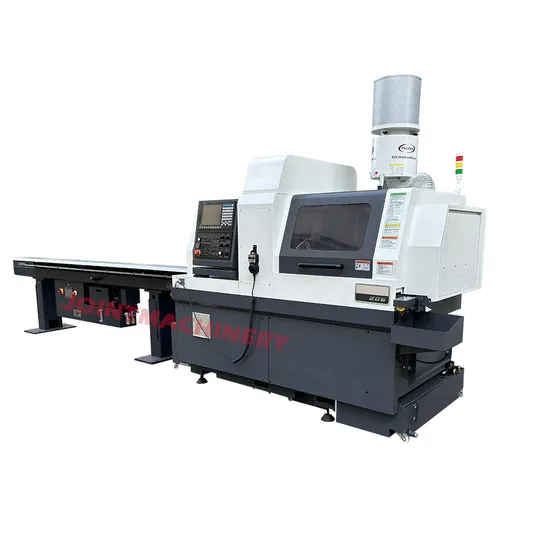

High Quality Precision 6 Axis Dual Spindle Swiss Type Automatic Lathe Machine

Product Description

√ Each axis uses imported high-precision linear guide,ball screws and precision bearings.
√ Use synchronous guide bush structure,realize high-speed and high-precision machining.
√ With guide bush and non guide bush mode,flexible switching to meet the needs of different processing technology.
√ Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
√ Select high torque motor, high rigidity and strength each axis slide and tool installation seat to meet the requirements of large cutting volume and high processing efficiency.
√ High scalability, with different tool quantities matched according to the process, resulting in high cost-effectiveness.
√ Multiple ER20 tools can be installed to increase the machine range.
This sophisticated series of machines is designed for precision processing, capable of performing composite tasks like turning, milling, drilling, boring, tapping, and engraving simultaneously. Ideal for batch processing of precision hardware and uniquely shaped non-standard shaft parts.
Swiss Type CNC Lathe SLM266-3

Model		Unit	SLM266-3
			6 axis, dual spindle
NC system			SYNTEC 220TB
Lathe rated power		kw	15
Machining Range
Max machining diameter		mm	Φ26
Max machining length (one-time clamping) With guide bush		mm	230
Max machining length (one-time clamping) Non guide bush		mm	2D
Main spindle power		kw	2.2/3.7
Sub spindle power		kw	2.2/3.7
Main spindle max through hole dia		mm	Φ27
Main/Sub spindle rev speed		rpm	10000/10000
Sub spindle max clamping dia		mm	Φ26
Sub spindle max through hole dia		mm	Φ27
Max tool installed qty		pcs	25
OD Turning Tool
Qty*Model		mm	6*12
Cross Live Tool
Cross live tool		mm	4*ER16
Drilling dia		mm	Φ10
Tapping/Threading die dia		mm	M6
Live tool rev speed		rpm	5500
Live tool power		kw	1
End-Face Tool (Main Spindle)
Fixed	Qty*Model	mm	4*ER16
	Drilling dia	mm	Φ10
	Tapping/Threading die dia	mm	M8
Live	Qty*Model	mm	3*ER16
	Drilling dia	mm	Φ10
	Tapping/Threading die dia	mm	M6
	Live tool rev speed	rpm	5500
	Live tool power	kw	0.75
Back End-Face Tool (Sub Spindle)
Fixed	Qty*Model	mm	4*ER16
	Drilling dia	mm	Φ10
	Tapping/Threading die dia	mm	M8
End face live tool		mm	4*ER16
Side-live tool		mm
Drilling dia		mm	Φ10
Tapping/Threading die dia		mm	M6
Live tool rev speed		rpm	5500
Live tool power		kw	0.75
Rapid feed speed		m/min	18(X1/Y2)24(X2/Y1/Z1/Z2)
Feed motor power		kw	1
The power capacity		kva	15
Air pressure device		mpa	0.6
Weight		kg	3500
Dimensions (L*W*H)		mm	2450*1350*1850

Tool Configuration
Machine Configuration
Standard Configuration:
SYNTEC numerical control system
Main pneumatic chucking device
Movable guide bush
Synchronal rotary guide bush device
Live tool
Workpiece belt conveyor
Optional Configuration:
Non guide bush
MITSUBISHI numerical control system
FANUC numerical control system
High pressure pump
Oil mist collector
Y2 tool holder
Chip conveyor
Long workpiece collector

Bar Feeder Details
Bar Feeder SLM-320/S2 Technical Specifications
Diameter	mm	Φ3- (Φ20) Φ26 (May vary depending on applications)
Model	m	2.5	3.2	3.7	4.0
Magazine capacity		Φ5mm*52pcs
Overall length	mm	3355	3949	4505	4855
Overall width	mm	720
Max bar length	mm	2600	3200	3750	4100
Weight	kg	378	393	435	440
Air pressure	kg/cm2	5~7
Power supply		220V 3P (Varying power supply is available depending on applications)
Spindle height	mm	900~1200
Headstock type		Fixed/Sliding
Options		Telescopic Tube,Synchronization Device

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and exportation of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our unwavering commitment to high-quality machines and exceptional customer service positions us as leaders on the global stage. We focus on rigorous control and enhancement of our machine quality, ensuring they meet and exceed the highest industry standards. Our machines integrate cutting-edge core technologies from Taiwan and Germany, coupled with advanced production equipment and processes, to deliver unmatched product quality and reliability. Known for their superior performance in precision, stability, and dependability, our machines adeptly handle complex and high-demand machining requirements. With a worldwide export footprint, our products have earned widespread recognition and popularity, serving markets across Asia, Europe, South America, North America, and beyond. We have cultivated long-term partnerships with clients from diverse regions, together generating significant business value.

---
