Two Spindles Stone Engraving Machine with Two Rotary Axis

Product Description

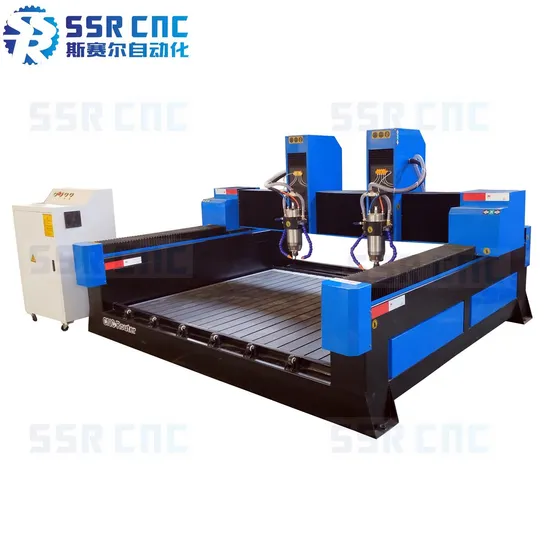

Two Spindles Stone Engraving Machine with Two Rotary Axis SSR-1515-2H

Features
1)Two head stone CNC Router with two spindles, can process two workpiece at same time. The machine has a switch, you can turn on one spindle, you can also turn on two spindles for simultaneous operation. Improve working efficiency.
2)The bed is made of a thick steel pipe and processed in a high temperature way avoid deformation, thus the bed has good rigidity and high strength.
3)The machine is equipped with imported square linear guides with high accuracy, can withstand a large load and provides a long service life.
4)The table is a water tank with a cooling system. The table surface is coated with an aluminum profile with T- grooves to protective plastic.
5)X Y axis use helical gear rack to increase the traction.
6)The dust-proof cover is installed on the X, Y, Z axis, which prevents stone chips and cooling water falling onto them.
7)High power spindle, long service life, stable operation and strong starting characteristics, high torque, which can provide fast processing and higher efficiency.
8)Good electromechanical design, strictly selected tje electrical parts to minimize machine breakdown.
9)On the machine, all cables use a special highly flexible cable,and reciprocating motion can reach 10 million times.
10)Long warranty time(24 months)
Product Parameters

Machine Model	SSR-1515-2H Stone columns carving machine
Working Area(X, Y, Z)	1500mm*1500mm*400mm
Table Size(X, Y)	2000mmx1920mm
Machine Structure	Welded steel
Table Structure	Aluminum T-slot
Guides of X Y Z	Taiwan imported rail guides
Transmission of X ,Y	High precision helical gear rack
Transmission of Z	Ball screw
Spindle Power	2pcs*5.5KW, water cooling
Collet	ER25 (diameter 3.175mm, 4mm, 6mm, 8mm, 10mm, 12mm, 12.7mm)
Spindle Power	24000R/min
Max. Travelling Speed	25000mm/min
Max. Working Speed	15000mm/min
Control System	NC-STUDIO
Positioning accuracy	≤0.01mm
Processing accuracy	±0.01mm
Motor	Powerful 86 SERIES 450B Stepper Motor
Driver	Powerful LEADSHINE DMA860H Step Driver
Auto Lubrication System	With
Water Pump	With
Work Zero Sensor X, Y, Z axis	With
Cutter Height Sensor	With
Wave Filter	With
Dust-Proof Cover	With
Working Voltage	AC380V,50HZ
Net Weight/Gross Weight	1040KGS/1180KGS
Package Size	2670mm*2280mm*1710mm
Warranty	24 months
Optional	-6.0 kw, 7.5 kw water cooling spindle -The rotating device (fourth axis) diameter is 100mm, 160mm, 200mm, 250mm, 320mm -Servo motor and servo driver -Can be customized according customers' special requirements

Detailed Photos

Machine Pictures:

Working Samples
Applicable Areas:
The Stone cnc router machine is multifunctional,can be used in various industry, for example: the production of monuments, fireplaces, souvenirs, sculptures, the manufacture of models for foundry, the manufacture of advertising, models of architectural structures and other products made of stone and other materials of high hardness
Applicable Materials:
Granite, marble, basalt and other types of stones, tiles, glass, ceramic, metals, as well as wood, plastic and many other materials.

Different Models
We have different models optional, you can choose the suitable machine model according to your materials size.
Special order is accepted!


Packaging & Shipping
1. We use international standard exporting plywood package, which is fumigation-free
2. We offer item FOB, CIF, CFR, DDU, EXW by sea:
FOB: Customer need to find shipping forwarder by himself, take machine from China sea ports CIF: We will find shipping find shipping forwarder for customer, arrange sea delivery for customer from China sea port to customer's country sea port, buy sea insurance for customer CFR: Under CFR item, customer need to buy sea insrance by himself, other is sampe as CIF item DDU: Under DDU item, we arrange machine delivery from our factory address to customer receiving address EXW: Customer need to arrange take machine from our factory and arrange all from China sea port to customer's country sea port 3. We can also offer delivery by air for small package machine
