Refrigerator Fridge Copper Refrigeration Part Stainer Filter Drier

Product Description

Refrigerator fridge Copper Refrigeration Part stainer filter Drier
refrigeration parts, freezer filter drier.

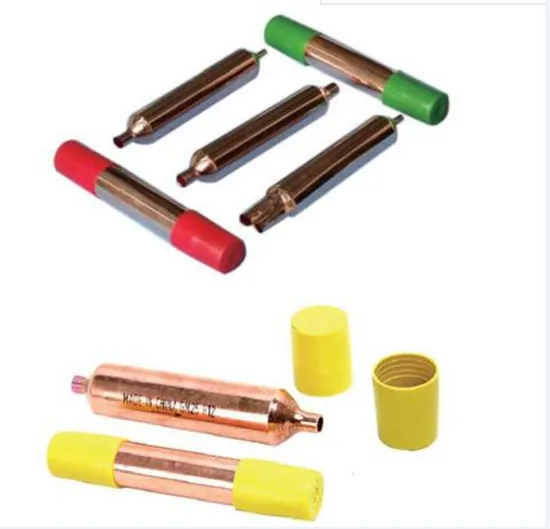

1. Copper filter drier(copper strainer) for refrigerator, freezer, water dispenser, air
conditioner, condensing units.
2. Both ends with plastic caps, big one or little one (white, yellow, red, blue, green, different
colors available)
3.5GR, 7GR, 12GR, 15GR, 20GR, 25GR, 30GR, 40GR, 50GR...
4. Your words can be printed on the body of driers
5. Labels are also available for your choice.
We could manufacture according to customer's drawings or samples.

Body shell	Cu-DHP
Molecular sieves	100% XH-9
Screen	200 mesh
Availability	Compatible with all refrigerants
Wall thickness	5~20g: 0.40mm; >20g: 0.50mm
Connection	Welded extension copper capillary 2 inlet (with access valve) + 1 outlet
Extended capillary length	40, 45, 50, 55mm
Inlet/Outlet	On request

MODEL	MOLEC	EXTERNAL DIAMETER	LENGTH
TOLERANCES	±5%	±0.10mm	±3.0mm
CF5	5.00	Ø16.00	80.00
CF7	7.00	Ø16.00	90.00
CF8	8.00	Ø16.00	101.00
CF10	10.00	Ø16.00	115.00
CF50	50.00	Ø29.00	160.00

---
