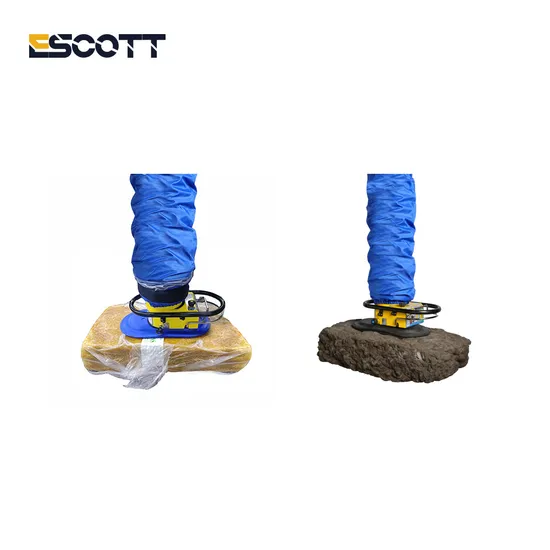

50kg Rubber Block Suction Cup Vacuum Tube Lifter for PU Block Handling Liftling Equipment

Product Description

Product Description
Vacuum Lifter System
is a kind of handling system that uses the directional flow of air to generate negative pressure in the air tube to generate suction power, so as to realize suction and crane handling process. It is used in a wide variety of industries to ensure efficient material flows. The characteristic is: fast handling pace, wide coverage of industries, and many types of products applied.
As a senior manufacturer in this industry, we have enough capabilities and customer experience to support us to provide you with best products and services. We will make your loads to be handled faster and more securely while protecting both the materials and your employees.
Base on your need, we can provide you with a complete workplace solution consisting of a handling system and a crane designed to work perfectly with that system.
Vacuum Lifting Machine General Structure:
1. Air Hose
2. Rail
3. Rail Limit
4. Column
5. Silence Box (optional)
6. Pressure Release Valve
7. Filter
8. Suction Foot
9. Lifing Unit
10. Vacuum Pump
11. Control Handle

Models for your reference.

Model	VEL100	VEL120	VEL140	VEL160	VEL180	VEL200	VEL230	VEL250	VEL300
Suction Power	30	50	60	70	90	120	140	200	300
Air Hose Length	2500	2500	2500	2500	2500	2500	2500	2500	2500
Air Hose Diameter	100	120	140	160	180	200	230	250	300
Lifting Speed	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s
Lifting Height(mm)	1800	1800	1800	1800	1800	1700	1700	1500	1500
vacuum pump	2.2Kw	2.2Kw	2.2Kw	3Kw	3Kw	3Kw	3Kw	3Kw	3Kw
Details	Click on	Click on	Click on	Click on	Click on	Click on	Click on	Click on	Click on

Detailed Photos
We Need Your Information
We need your below information if you need making order
1. Working Object Material/Measurement/Shape, please show us in picture
2. Moving Way: Horizental; 90 degree flip; 360 degree rotate
3. Picking Up Height and Lifting Height base on the ground or working platform
4. Installation condition: Ground Floor or other floors; base thickness; Ground condition
5. Drawings for the working site or working object or the machine you need, the more information the better. Our Factory

---
