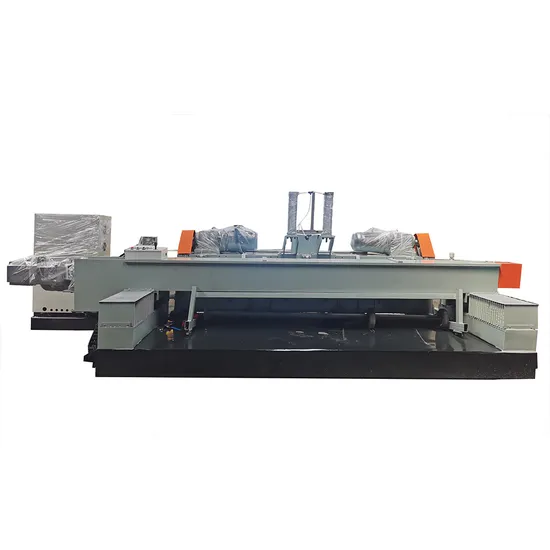

Debarking and Rounding Machine for Logs

Product Description

2900mm log debarker description For other size , please contact for more

LOG DEBARKER Model: GTLD290
Max Length of log	2900mm
Max Diameter of log	550mm
Minimum left-over log	80mm
Speed	45m/min
Total Power	24KW
Overall size	5200*2200*1100mm
Weight	About 4800KGS

Log Debarker-Features
1.After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade 2.Adopts rotary cuttingprinciple of non-chuck rotary lathe
3.Hydraulic pressure drive into the constructions, can quickly and effectively
remove bark and complete log the round work
4.One debarker machine can supply with two rotary lathe, save about five or six people
5.Hydraulic feeding, can debarking and roundup small size raw log
6.Competitive price and quality
Product Application of factory supplier high quality wood log debarker plywood veneer debarking machine
1. CNC rotary skin rouding machine
2.Working size: 500*2600mm
3.Mitsubishi or Siemens CNC system, simple operation.
5.Speed adjustable from to 40- 50m/min high efficiency.
6. Servo motor and Shanghai Motors.
7. Heavy duty frame, Compact structure.
The full veneer production line for plywood is available
Packing& Loading

---
