Chinese Machinery Micro Small Bagger 1.5t 2t 1t 0.8 1.2 1.8 2 Ton 1ton Mini Loaders and Mini Excavator or Digger for Sale

Product Description

Preduct description:
China factory cheap price new mini 1.5 ton crawler excavator machine for sale

As a professional manufacturer and trading enterprise, specialized in the export of Excavators, wheel loaders, tractors,forklifts and all kinds of attachments, around 12 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,and Specialized testing,we ensure every machine that you received has very reliable quality and stability.
This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
Pictures as follow:

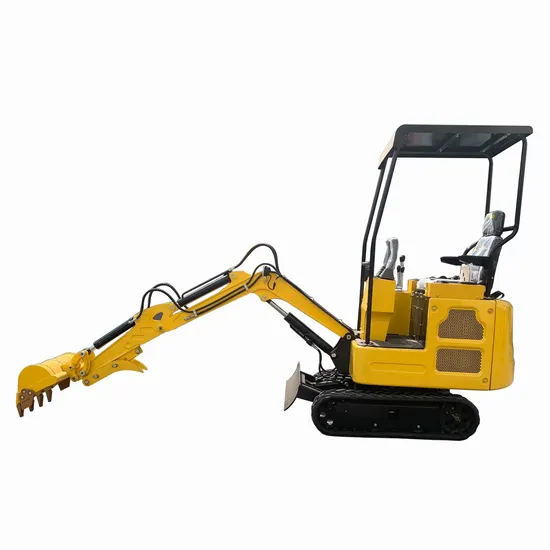

CP15 Excavator including:
- Operating Weight :1500KG
- Bucket capacity:0.04cbm
- Changchai ,15kw engine
- Hydraulic steering
- New adjustable seat
- With a standard bucket
- Easy-damaged spare parts
CP15 Excavator Specs:

Model	CP15
Operating Weight	1450kg
Digging bucket capacity	0.04cbm
Digging bucket width	500mm, can add narrow bucket is 200mm
Engine	CHANGCHAI/YANMA/KUBOT
Rated power	15kw/
Displacement	7.8ml/r
Bore stroke	2 cylinder, fan cool
Hydraulic oil tank	21L
Diesel oil tank	9L
Arm digging force	7.0Kn
Bucket digging force	12Kn
Electric pressure	12V
Electrick power	5W
MAIN DEMENSIONS
Overall dimension( LxWxH)	2650 x 1100 x 2200mm
Wheelbase	950 mm
Total length of track on land	1300mm
Platform ground clearance	370 mm
Platform back turning radius	820 mm
Chassis width	1010 mm
Track width	180 mm
Chassis ground clearance	150 mm
Track height	310 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1350 mm
Max. Digging height	2600 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1430 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm

Pictures:
Packaging & Delivery:
- 6 set in a 20GP, need to remove cabin,
-12 sets in a 40HQ,just drive them into the container
- Triangle wood and 10mm wire fixed.
Company Information:
Our service:
Certifications:
FAQ:

---
