16t Hydraulic Swing Arm Cutting Machine/Cutting Press

Product Description

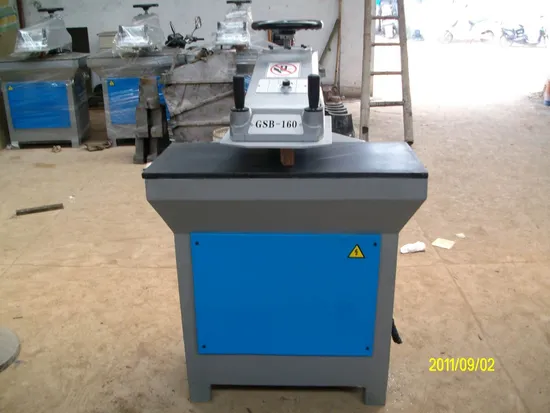

GSB-160 Hydraulic Swing Arm Cutting Machine

Features:
1) Safe, two-hand trip operation; the sway arm can swing freely. Best operation line of sight
2) Used to cutting plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials, especially suitable for shoe industry
3) Equipped with lubricating system to lessen wear and prolong service life
4) Lower limit of stroke is controlled by a time-lapse circuit with high precision,so it can make high-quality shoes
5) People can adjust height of sway arm from table by simple handle, convenient and stable

Model	GSB-160
Cutting Force	16 Tons
Sway Arm Width	350mm
Stroke Adjustment	0-60mm
Distance Between Upper Table And Lower Table	60-120mm
Table Area	900×400mm
Motor Power	0.75kw
Packing Size(L×W×H)	1000×800×1400mm
Weight (Without Oil)	600Kg
Hydraulic Oil (46#)	45 Liters
