European Standard Automatic Sheet Metal CNC Bending Machine for Purification

Product Description

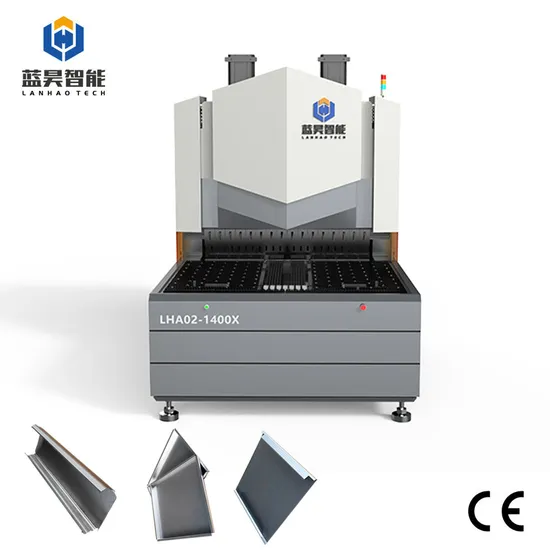

LHA02-X series intelligent panel bender adopts suction cup loading method. The whole machine is designed and produced in accordance with high-precision machine tool standards. Used on smooth panel surface, no punching, no holes, which benefits suction cup to adsorb. The equipment has been iteratively upgraded in multiple versions, stable and reliable, supporting long-term operation,which greatly improves the production efficiency of bending enterprise. Product Parameters

LHA-1400X-02 Technical parameters
Loading method	Suction cup
Worktable structure	Brush
Max. bending speed	0.2 second/time
Max.bending width	1400mm
Max.Bending size	L1400mm W1400mm
Max. Bending height	170mm
Rated voltage	380V
Total power	34KW
Average power	About 1.5KW
Noise decibels	About 50 db
Machine size	L365cm W190cm H280cm
Total weight	10 tons
User operating environment	Win7 or above operating system
Max. Bending thickness	UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold plate 1.2mm UTS 265N/mm2 aluminium plate 1.6mm
Min. Panel thickness	0.35mm
Four sides forming, min. Inner size	140mmx210mm
Double sides forming, min. Inner size	140mm
Axis	Standard synchronized 9 axis
